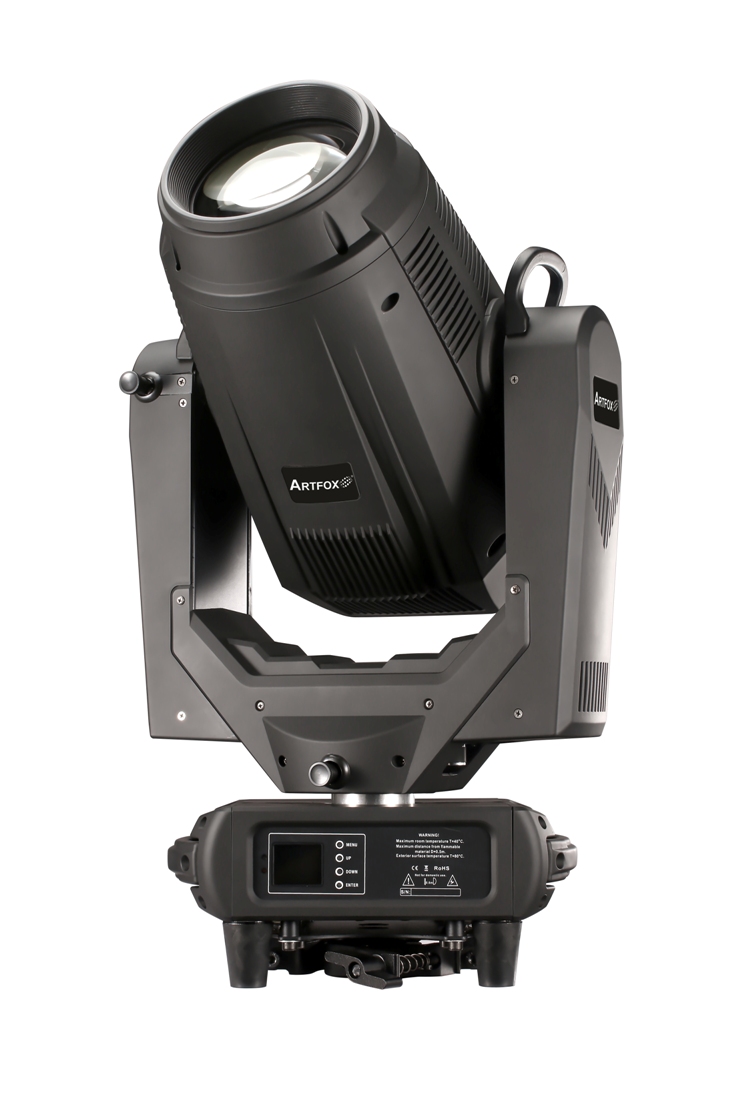

Matrix Profile 600 - LED 600w lamp, Beam Spot Wash 3-in-1, CMY, Profile optional
|
Matrix Profile 600 combines a powerful 600W cool white LED light engine with an impressive 25,000+ lumen.
Leading up the Hydro Profile range of beam shaping tools is a 4 blade frame system. Each shutter is controlled using two independent motors, one on each side, which allows the individual blades to be applied at any desired angle. Additionally, the rotation of the combined louver components means that shapes created using the four louvers can be precisely positioned. A motorized zoom feature provides further control over the output and can be used to vary the beam angle between 6 and 45 degrees. A narrower beam can then be achieved with the motorized iris, which also provides an automatic pulsing effect.
An almost infinite variety of aerial effects and surface pattern projections can be created. It features two separate GOBO wheels, one with 7 indexed rota-table Gobos and the other with 8 fixed Gobos, all of which are interchangeable. It also contains two indexed, rota-table prisms - a 4-sided circular prism and a 6-sided linear prism - and an animation wheel. It is also possible to choose any desired color thanks to the CMY color mixing system with additional CTO logo. The fixture also offers a separate 7-position color wheel housing a range of useful diachronic mirrors including CTB and high CRI filters. The colors are all interchangeable, allowing for custom filters if a very specific shade or tone is required for a particular product.
Features:
1. An advanced 600W led moving head head profile fixture including CMY+CTO color mixing, a four blade framing shutter system with rotation, a color wheel, a CRI filter, an animation wheel, 6-45 degrees beam angle, two independently layer-able prisms, frosts, a static and a rotating Gobo wheel
2. 16-bit dimming of master dimmer for smooth control of fades
3. Variable CMY + CTO color mixing system to create a wide pallet of colors
4. Independently layer-able 6 facet linear and 4- facet round prisms for increased prism options
5.One rotating and one static gobo wheel for dynamic texture possibilities
6. Independent light and medium frosts for beam control
7.+ or – 60 degree rotation framing shutter system to allow for better framing positioning.
8. Animation wheel for enhanced visual effects
9. Iris for total beam control
10. RDM control over DMX for fixture reporting
11. Field Angle: 6.3°~ 44.3°
Specifications:
Source:
LEDs (CW) 600 W(50,000 hours life expectancy)
Beam:
Beam Angle: 6° to 45°
Field Angle: 6.3° to 44.3°
Framing Shutters: Yes
Prism 1: 6 linear facets, motorized, rotating
Prism 2: 4 Circular facets, motorized, rotating
Color:
Colors: 7 + white, split colors, continuous scroll at variable speeds
Colors: Variable CMY flags, CTO flag, CRI filter, color correction,
Color Temperature (at full): 7,800 K
Gobos:
Rotating Gobos (1): 6 + open, rotating
Static Gobos (2): 8 + open, continuous scroll at variable speeds
1 animation wheel
Effects:
4-blade shutter frame ,Profile, 90° rotation
Variable CMY + CTO color mixing system
1 Color Wheel
2 gobo wheels (1 rotating, 1 static)
1 animation wheel
Prism: 6 linear facets, motorized, rotating
Prism: 4 Circular facets, motorized, rotating
Motorized Zoom: 6-45 degrees
Iris
Control:

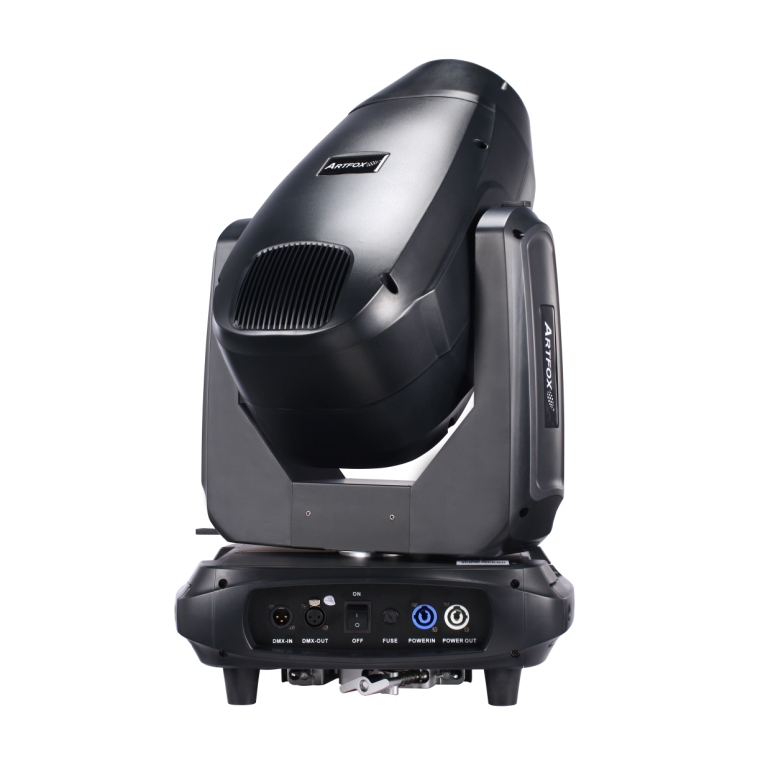

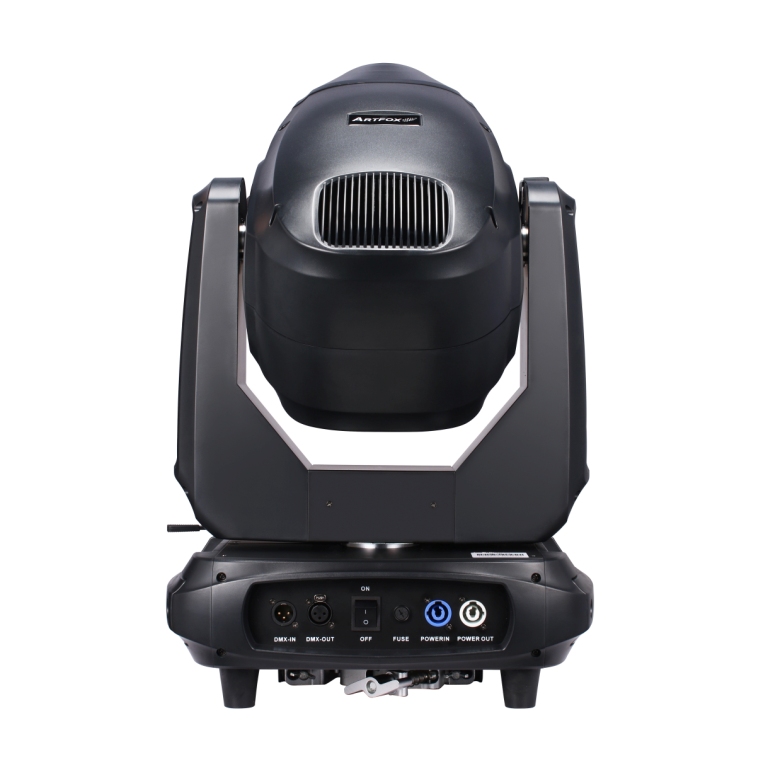

Data Connectors: 5-pin XLR in/out
XLR Net RJ45 connectors in/out
Control Protocol: Art-Net, DMX 512, Scan, Wireless DMX
DMX Channels: 36/50/57chs
Power:
Power Connection:Powercon in/out
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Max. Power: 1,088W
Size/Weight:
Length:12.5''(319mm)
Width:17.0''(433mm)
Vertical Height:28.3''(720mm)
Weight:84.9lbs(38.5kgs)
IP20
|
|
|
|
|
|
