Main Categories > Professional Stage Lighting > LED Moving Head > Solar IP 19 Ring     <<Prev  Next>>
Product Images

[click to enlarge]

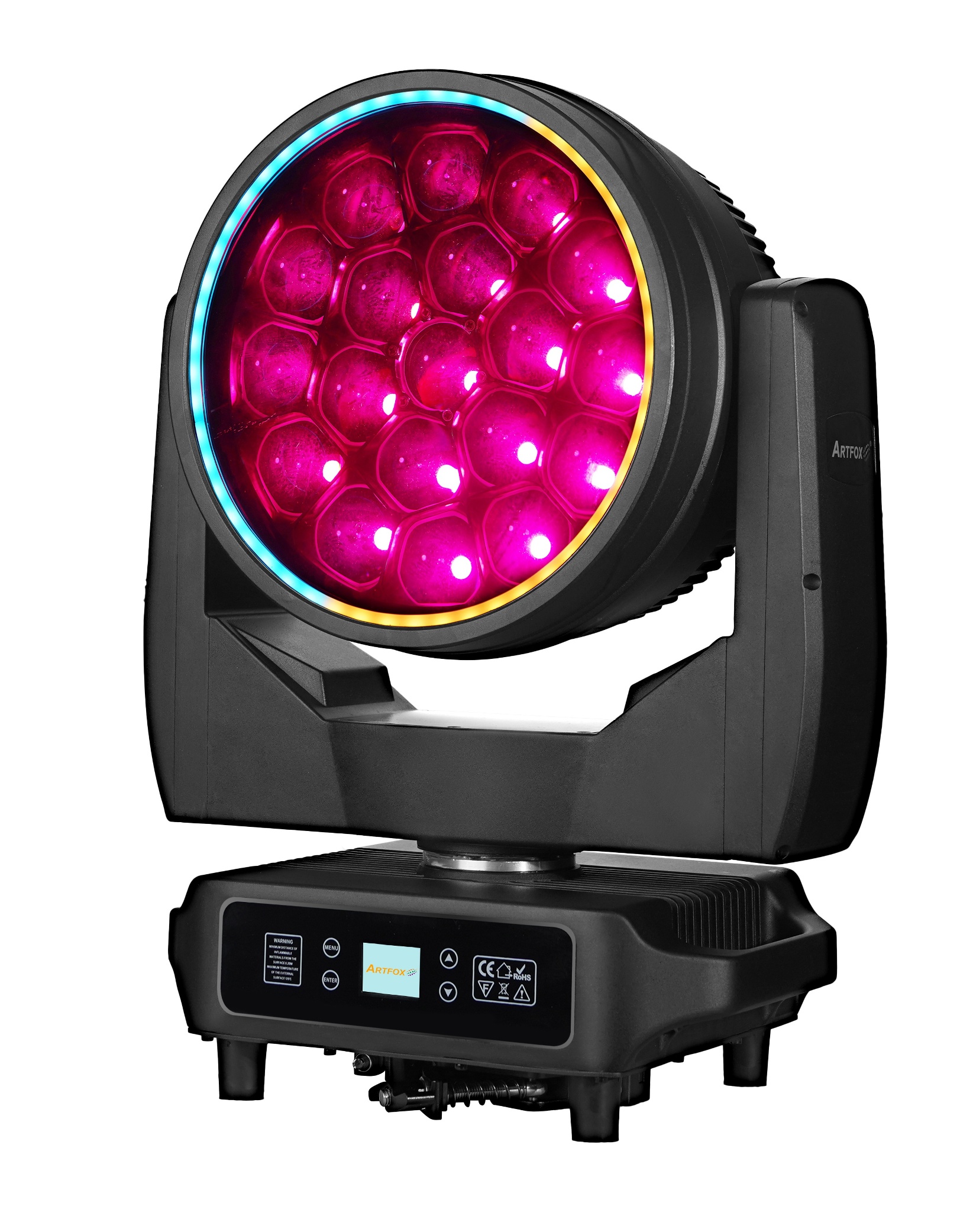

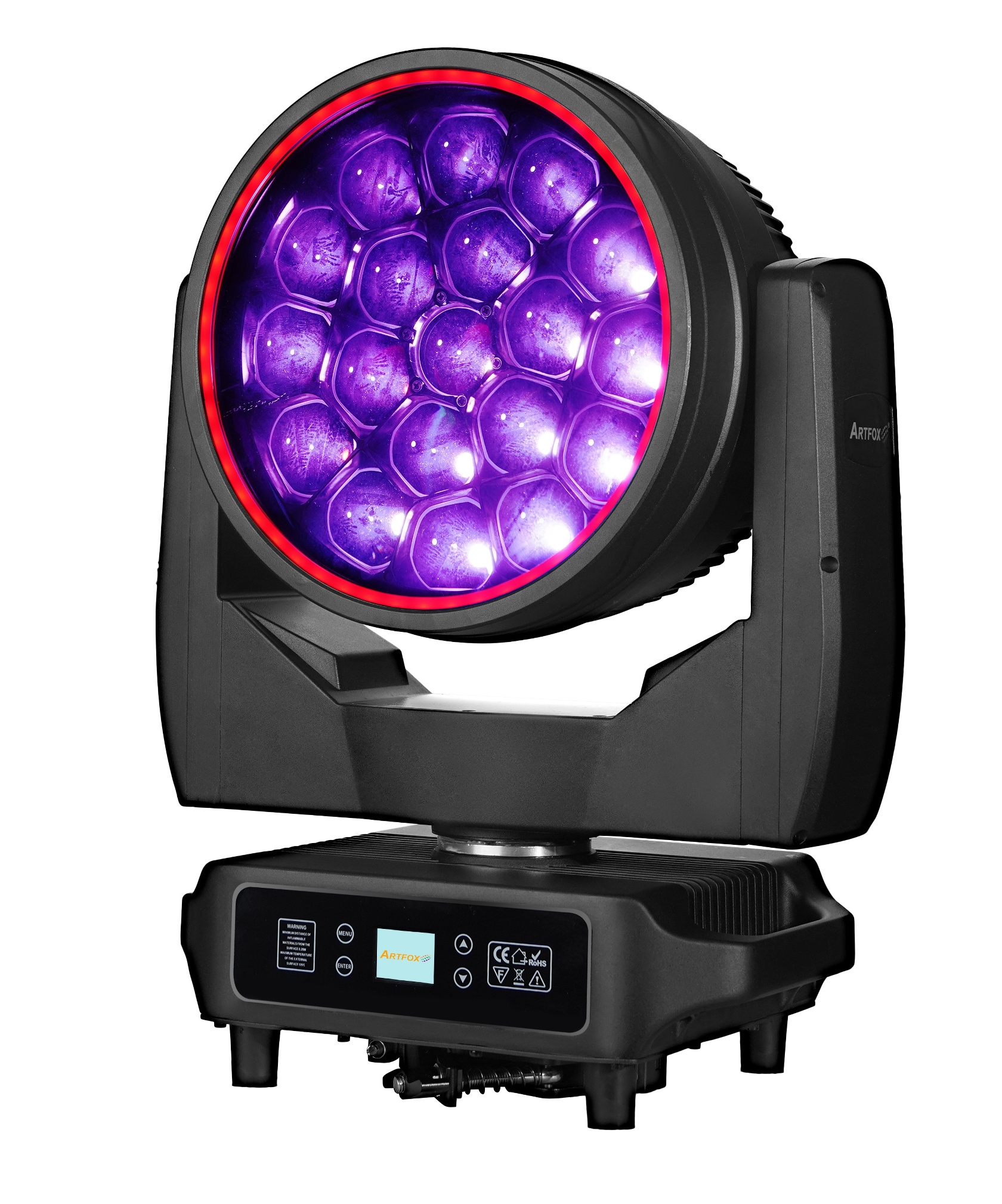

LED Moving Head:Beam Wash 2-in-1, 19x40w RGBW, Pixel Tech, IP65 outdoor, LED Ring


LED Moving Head:Beam Wash 2-in-1, 19x40w RGBW, Pixel Tech, IP65 outdoor, LED Ring

LED Moving Head:Beam Wash 2-in-1, 19x40w RGBW, Pixel Tech, IP65 outdoor, LED Ring

LED Moving Head:Beam Wash 2-in-1, 19x40w RGBW, Pixel Tech, IP65 outdoor, LED Ring

LED Moving Head:Beam Wash 2-in-1, 19x40w RGBW, Pixel Tech, IP65 outdoor, LED Ring

LED Moving Head:Beam Wash 2-in-1, 19x40w RGBW, Pixel Tech, IP65 outdoor, LED Ring

LED Moving Head:Beam Wash 2-in-1, 19x40w RGBW, Pixel Tech, IP65 outdoor, LED Ring

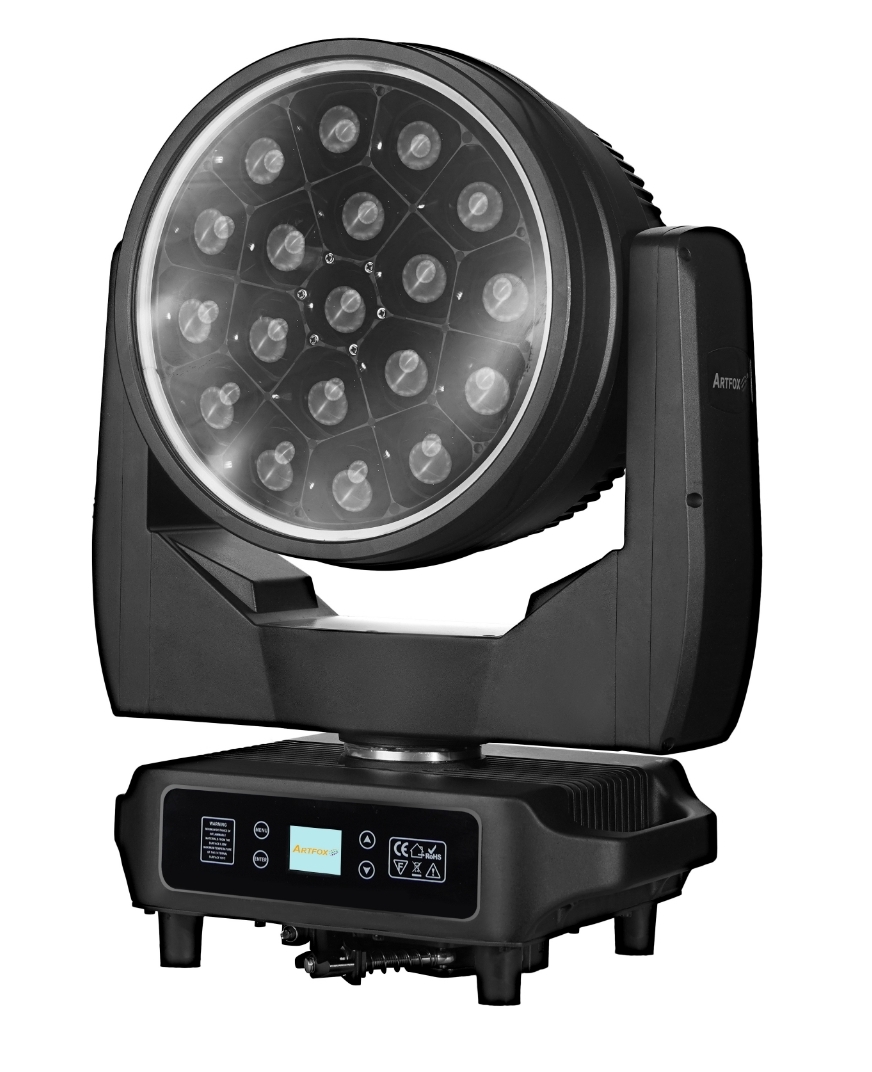

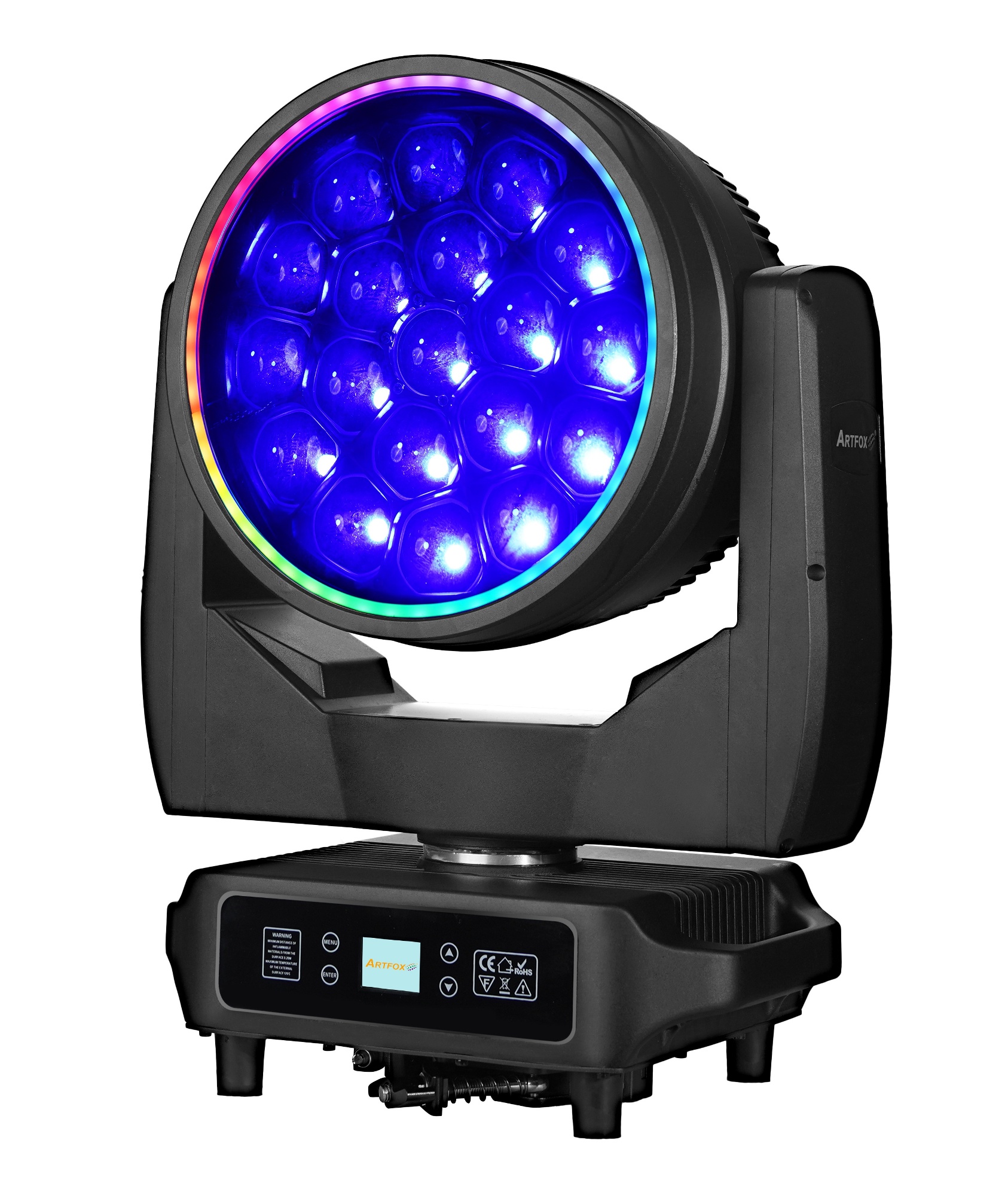

 Solar IP 19 Ring  - Beam Wash 2-in-1, 19x40w RGBW, Pixel Tech, IP65 outdoor, LED Ring

Solar IP 19 ring powered by 19pcs 40w RGBW LEDs, total aluminal house make the waterproof is very excellent
it is bright and also with LED ring make the lights looks very beautiful
With excellent optics features, beam wash 2-in-1 linear zoom

Features:
IP65 outdoor, Super bright, 19x40w RGBW leds
Beam wash 2-in-1, RGB LED Ring
linear zoom 3.5°-50°
Excellent optic features: Beam is sharp, Wash is very even
Very powerful but very quite

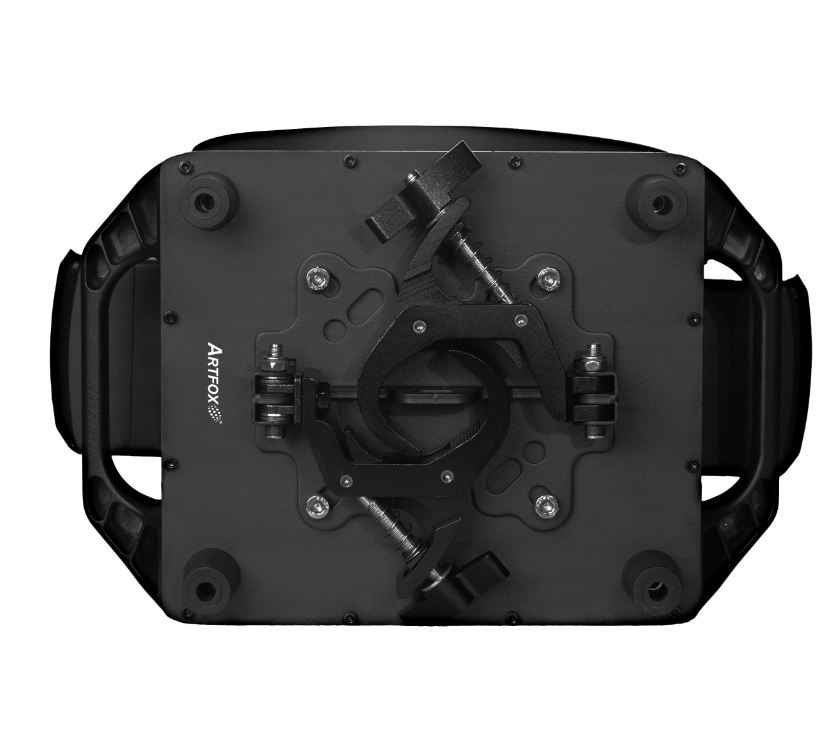

with folding clamps


Specifications
Light Source
19 × 40W RGBW 4-in-1 high-power LEDs
RGB LED Ring
LED lifespan: ≥ 50,000 hours
Electrical
Total power consumption: 730W
Input voltage: 100-240V AC, 50/60Hz
Effects
Wash effect with motorized zoom
Beam effect and color mixing modes
Optical System
Zoom range: 3.5°-50° (motorized)
High-efficiency optical lens system
Control
Control modes: DMX-512 / Auto Run / Sound Active / RDM
DMX channels: 22 / 29 / 36 / 43 / 79 / 98 channels
16-bit resolution for smooth dimming and pan/tilt movement
Movement
Pan: 540° (16-bit precision)
Tilt: 270° (16-bit precision)
Display & Interface
1.8" TFT full-color LCD display, 180° reversible
Multilingual menu: English / Chinese

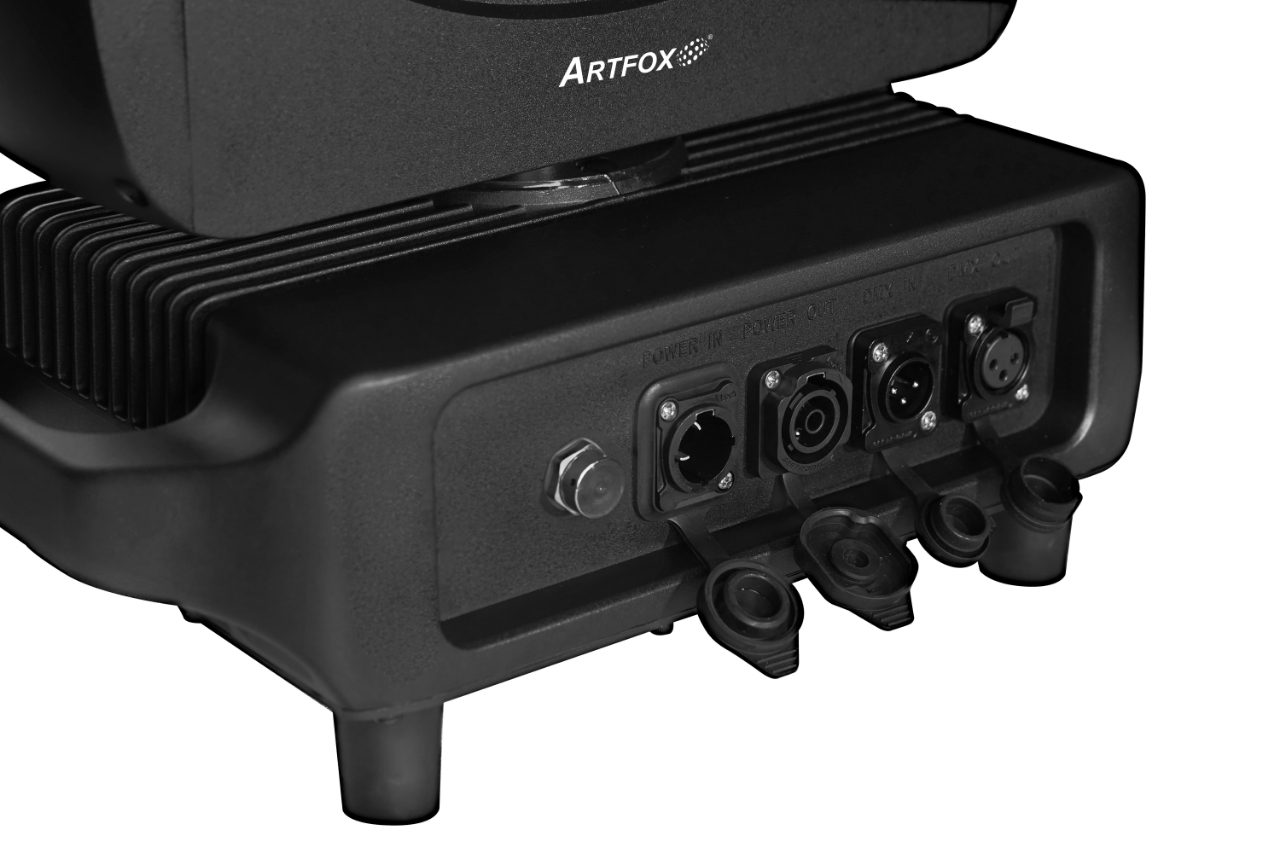

Signal connections: Waterproof 3-pin XLR in/out
Power connections: Waterproof PowerCon in/out
Construction
Housing material: Die-cast aluminum
IP rating: IP65 (outdoor rated)
Thermal Management
Overheat protection
Intelligent fan speed control based on head temperature
High-efficiency heat dissipation system
Power Linking
At 220V: up to 4 units (use 2.5mm2 cable)
At 110V: up to 2 units (use 2.5mm2 cable)
Size and weight
net weight and size: 17"x11"x21", 49 lbs
Carton box: 22x17x25 in, 57 lbs
Flight case (2-in-1): 32x20x29 in, 163 lbs
