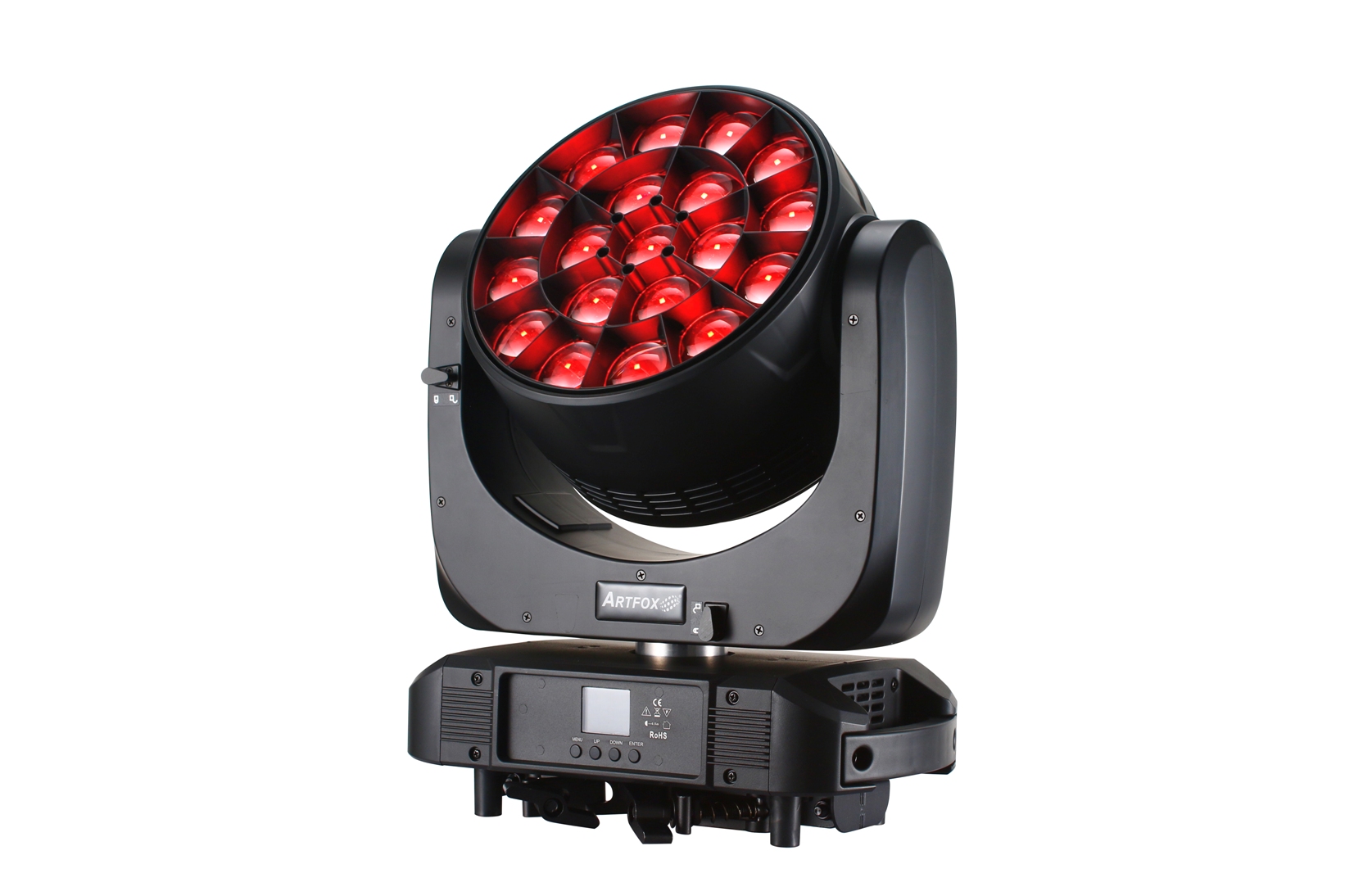

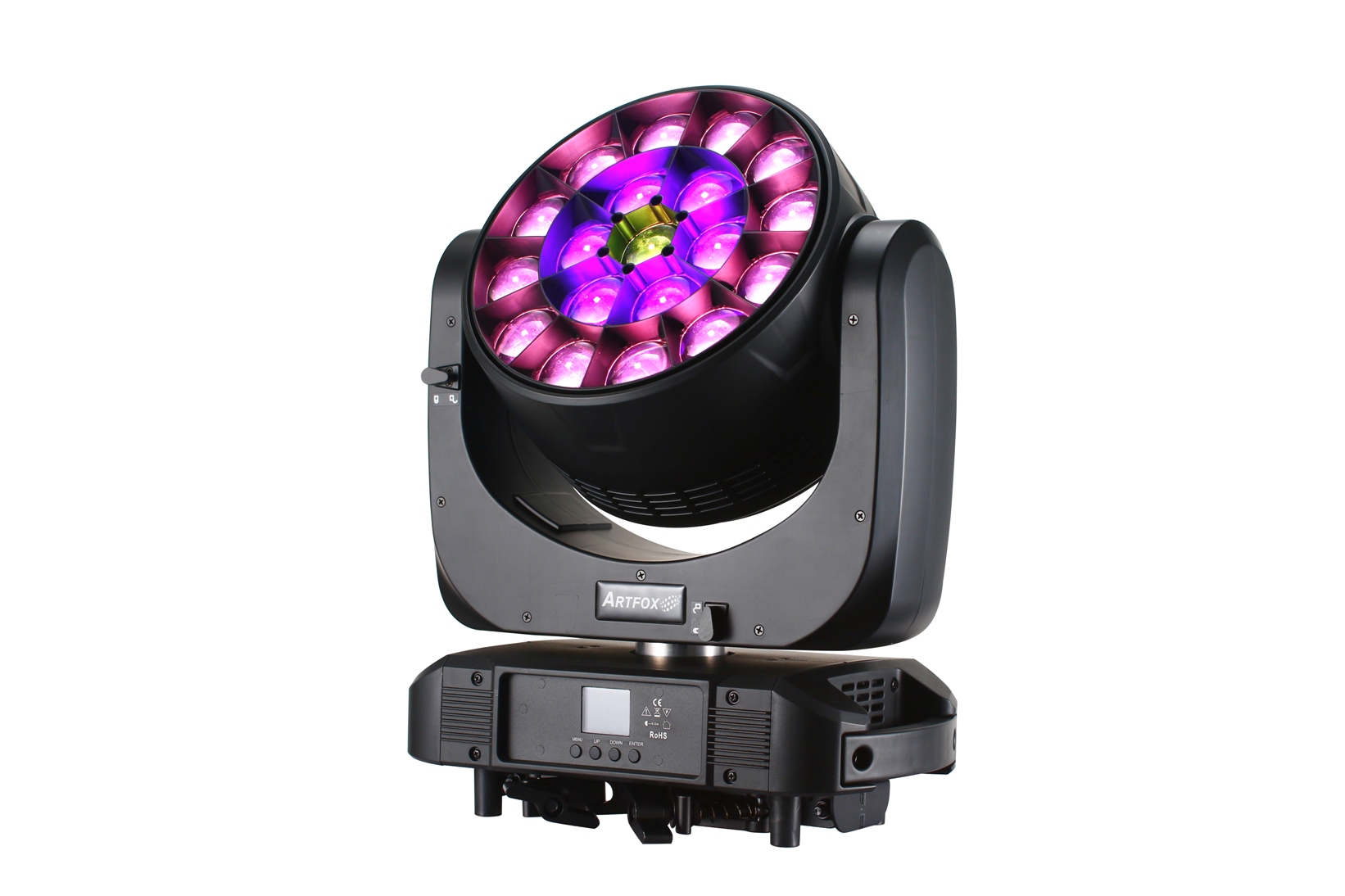

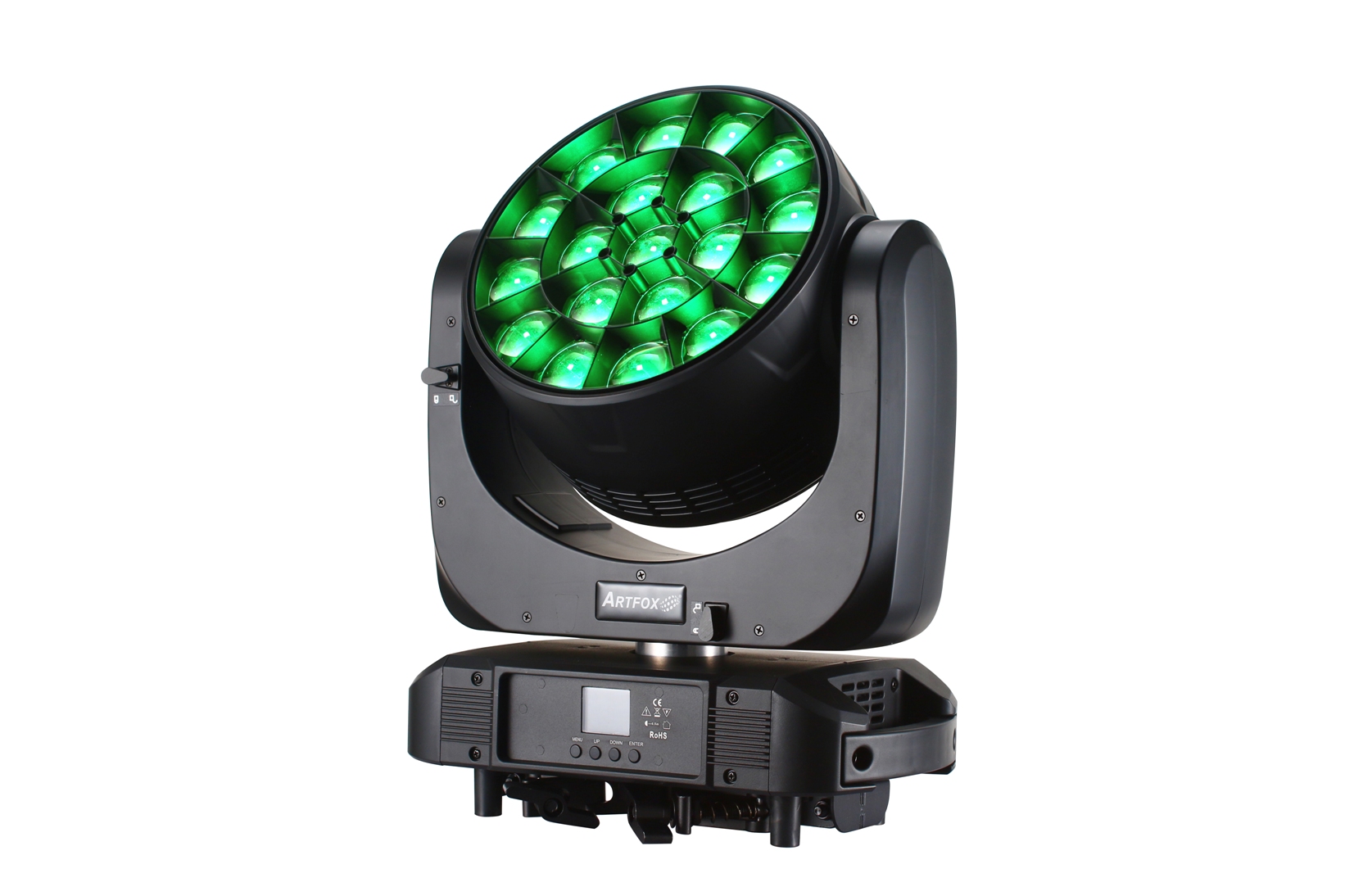

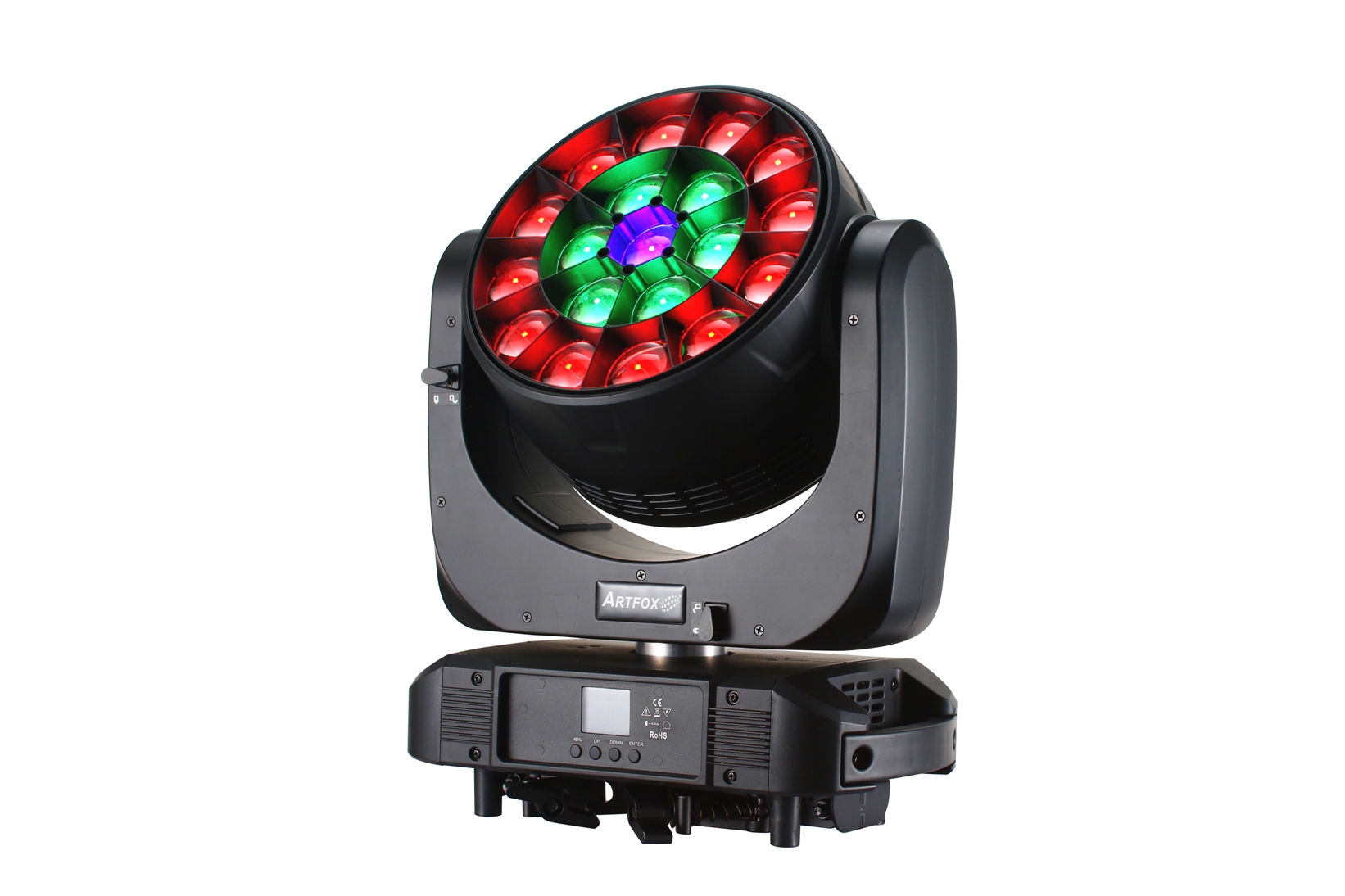

Solar 19 - Beam Wash 2-in-1, 19x40w RGBW, Pixel Tech
|
The ARTFOX “Solar Wash X” a Medium size yet extremely powerful Wash Effects fixture featuring custom designed optics, pixel mapping, pre-programmmed color and 6° – 49° zoom range. Powered by 19 (40 W) Osram RGBW LEDs, it can handle any application, even aerial washing, with ease.
The Solar Wash X features 19x40W RGBW Quad LEDs, most power mutil-chip quad-color, the advanced zoom optical system, which range from 6-49 degrees . To fit with high-end applications, It also features 16 bit Dimming curve,,excellent color mixing. Extremely quite fans design, 3 section circle control. Because of Special spherical Lens, there are no any leak lights, so the beam effect is narrow and wash effect is bright.
Features:
(19) 40W, Osram, 4 in 1 moving head beam wash with pixel mapping and zoom
6 degree narrow Beam and 49 degree large bright wash , Beam wash, 2 in 1.
It features folder clamps, extremely powerful output.
Precise and fast movement, silent fans and movement.
16-bit Dimming of master dimmer as well as individual colors for smooth control of fades
Built in colors for quick design possibilities
6° - 49° Zoom angle for variable beam sizes
Specifications
SOURCE
(19) 40W Osram RGBW LEDs
60,000 Hour Average LED Life*
EFFECTS
Motorized Zoom (6° - 49°)
Pan: 540° Tilt: 270°
Linear Color Temperature Presets
RGBW Color Mixing and Pixel Control
Color Presets and Macros
Electronic Strobe and Variable Dimming Curves
16-bit Dimming
CONTROL / CONNECTIONS
2 DMX Channel Modes (19 /27)
Fast and precise Pan and Tilt Movement
4 Button LCD Menu Display
DMX, RDM,Protocol Support
3 PIN AND 5pin XLR DMX In/Out
PowerCON TRUE1 Power In/Out
Folder Clamps
SIZE / WEIGHT
Length: 14.9" (380mm)
Width: 11.5", (292mm)
Vertical Height:18.3"(466mm)
Weight: 35.2lbs. (16 kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
800W Max Power Consumption
14°F to 113°F (-10°C to 45°C)
APPROVALS / RATINGS
CE |FCC | cETLus pending | IP20
|
|
|
|
|
|
