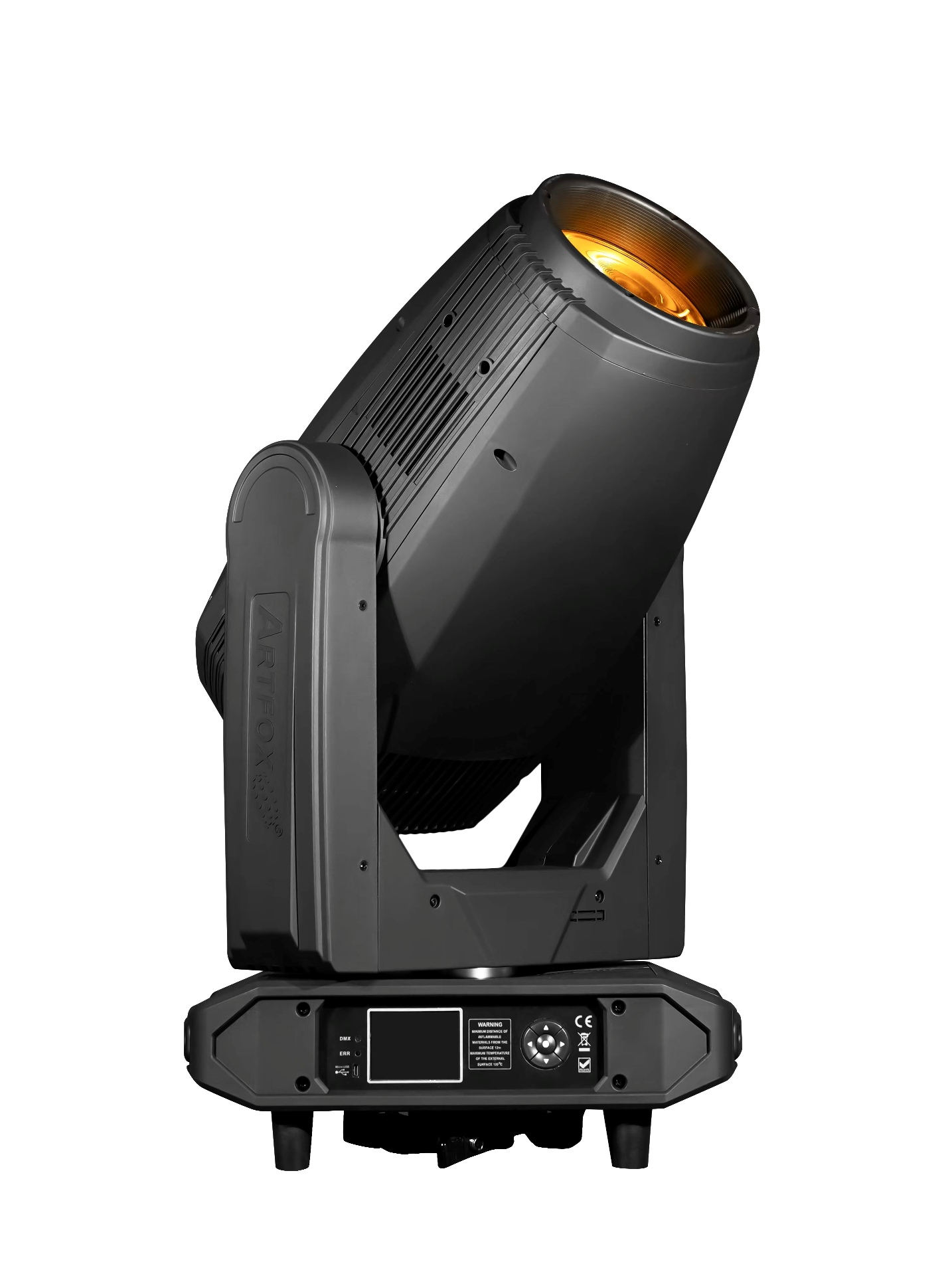

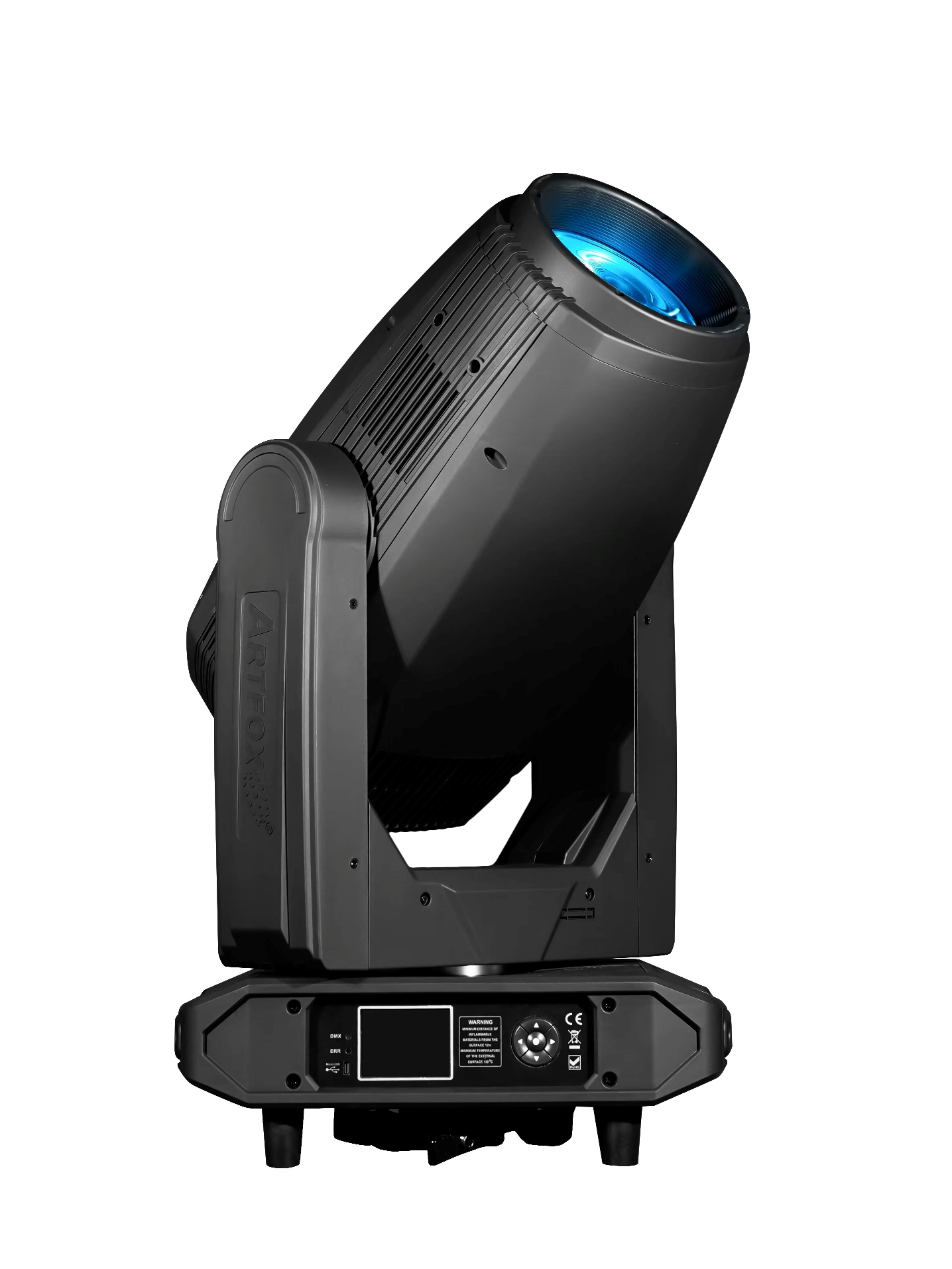

Matrix Profile X3 - LED 800w lamp, Profile Beam Spot Wash 4-in-1, CMY,CTO
|
Matrix Profile X1 is compact and lightweight a an immense 680-Watt LED engine, an impressive 65,000+ Lumens, and expansive feature set, . A 4-blade rotatable framing system, alongside motorized zoom (6 ~ 45 degrees), motorized focus and iris, together with 2 frost filters, facilitate precise manipulation of the output. A CMY color mixing system, combined with a CTO flag and 7 slot replaceable color wheel, allow for exceptional versatility and creative freedom. Meanwhile, 2 GOBO wheels (2 rotating replaceable gobos), 2 rotating prisms(4-facet prism +6 liner facet prism), and an animation wheel allow for the creation of an almost unlimited variety of aerial effects and surface pattern projections.
Features:
Motorized Focus
2 gobo wheels, replaceable glass gobo.
Beam Angle: 6°~ 45°, zoom
4 Rotating Framing Shutters, +/-90°, plus shape rotation
Iris
. CT0 (2,700k to 6,500k)
Animation Wheel
2 Prism FX: Rotating 6-facet Linear & rotating 4-facet Circular
0-100% smooth dimming
Various strobe speeds 1-25hz
2 cooling fans
Light Source:
680W Cold White LED Engine (50,000 hr,6,500k.)
65,000+ Lumens max
CRI: 70 and 90 (Out of the fixture)
Color:
CMY color mixing system
Variable CTO flag
Color wheel with 7 dichroic colors + white (includes CTB and High CRI filters)
Colors on wheel are removable and replaceable
Gobo Wheels:
(1) Rotating glass Gobo wheel with 7 Gobos
(1) glass Gobo wheel with 8 Gobos
All Gobos are replaceable
Gobo Shake Effect on both wheels
Gobo1 size: 25.4mm (outer); 16mm (viewable); 0.5mm (thickness)
Glass gobo2 size: 25.4mm (outer); 16mm (viewable); 3.3mm (thickness)
Prism Wheel:
Prism Wheel 1: Rotatable 6-facet Linear
Prism Wheel 2: Rotatable 4-facet Circular
Both Prisms are indexable
Frost Filters:
Frost 1: Heavy frost for wash effect
Control:
3 DMX Channel Modes: 41chs
Color LCD display with 4-button function menu
Control Mode: DMX512 or internal programs
6 Dim Modes: Standard, Stage, TV, Architectural, Theatre, Stage2
4 Dim Curves: Square, Linear, Inv. Square and S. Curve
Selectable LED Refresh Rates (900 Hz~25K Hz)
0-100% smooth dimming
Various strobe speeds
With Wired Digital Communication Network
RDM (Remote Device Management)
. ARTNET
Pan/Tilt:
Pan: 540 degrees
Tilt: 270 degrees
Pan & Tilt Locks
Connections:
DMX Connections: 3/5-pin XLR In/Out
Power Connections: Ture1
. Date in&out: Artnet(for optional)
Multi-voltage operation: 100-240V, 50/60Hz
Max power consumption: 950W
Dimensions & Weight:
Dimensions (LxWxH): 16.4" x16" x 27.5" (416x408x700mm)
Weight:64.9lbs (29.5kg)
|
|
|
|
|
|
