Nexus D4 - 4 ways seamless connect, excellent blinder light
|

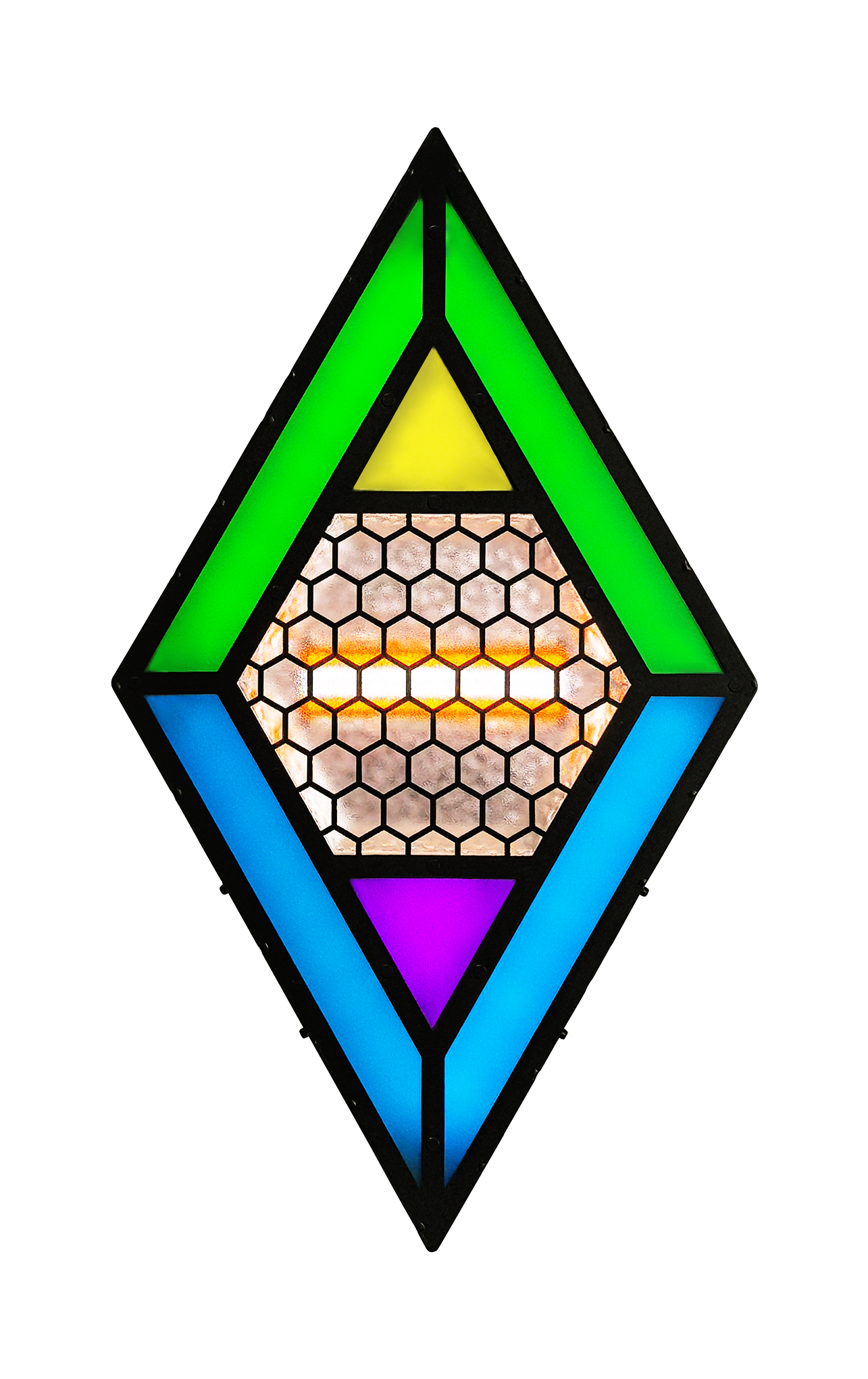

Nexus D4 is a professional pixel-mapping exposure panel light with LightCON seamless splicing system, adopting honeycomb hexagonal Amber+CW 120W main light source plus surrounding RGB pixel LEDs. The diamond-shaped panel supports multi-unit seamless connection to build large-area creative lighting walls. It delivers sim-tungsten warm glow, rich RGB dynamic patterns and pixel-mapping effects, widely used for stage shows, TV studios, live events and entertainment venues. IP20 indoor-only design for professional event installations.
Features

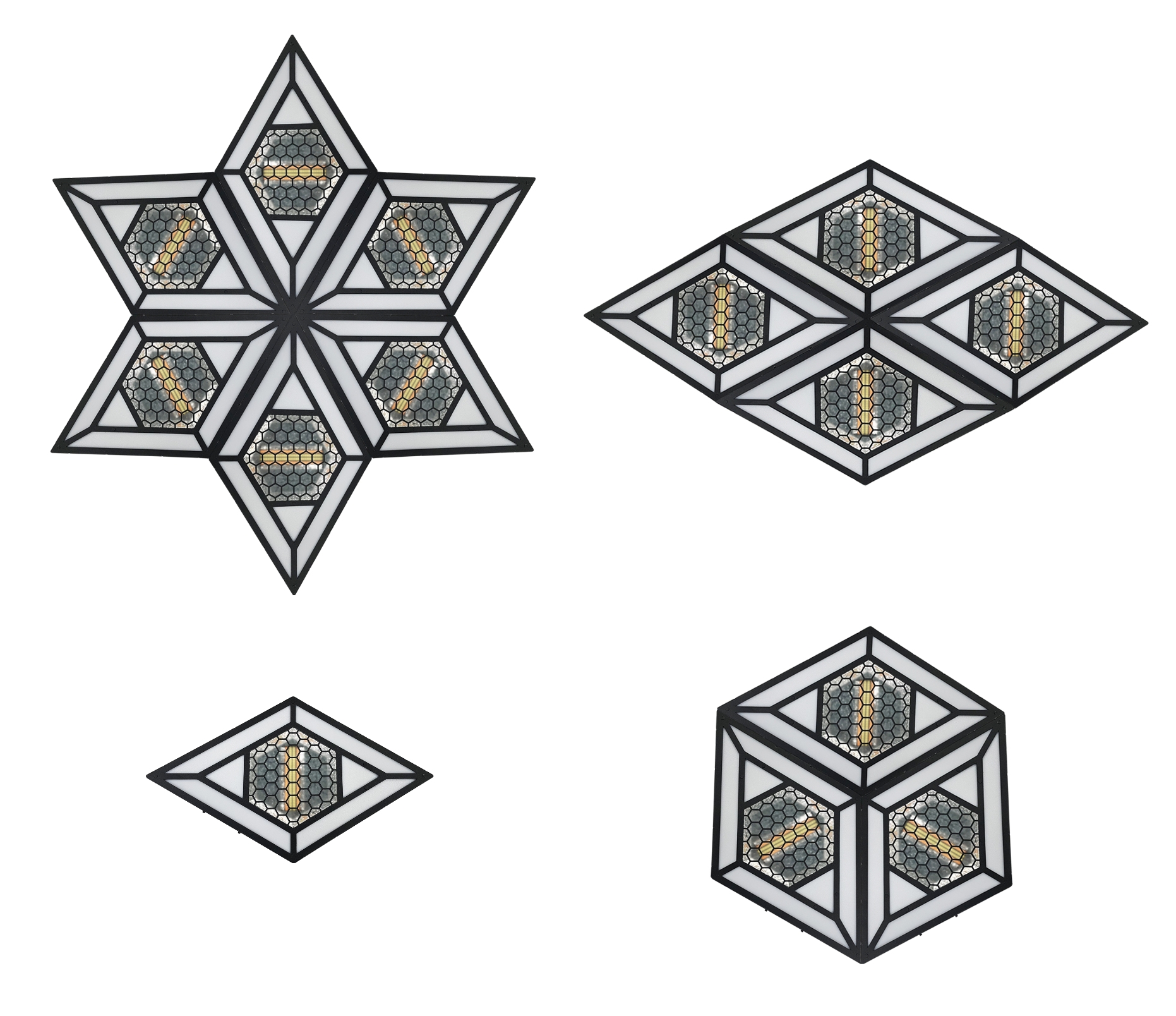

LightCON 4-way seamless quick-splicing system for flexible array combinations

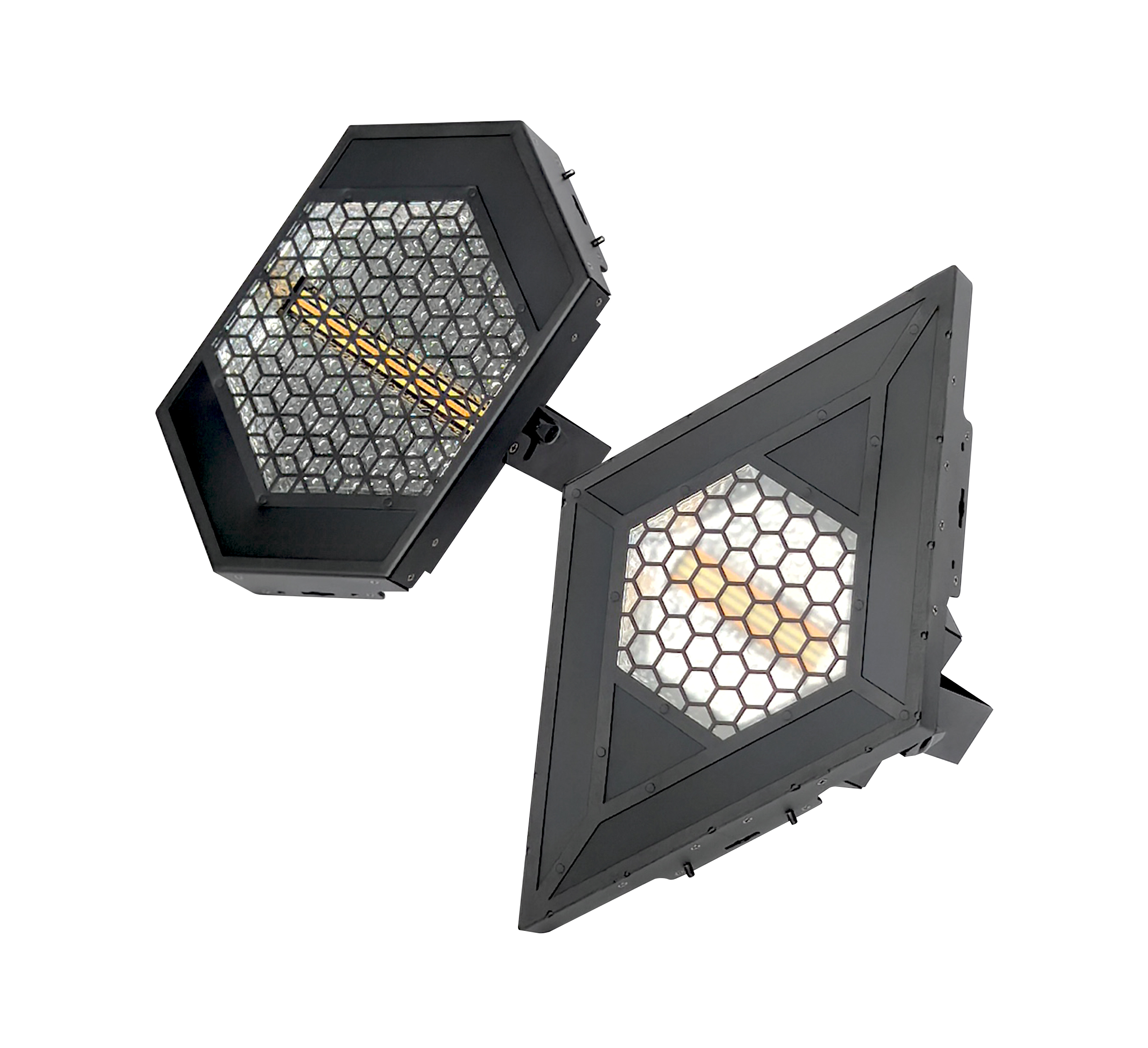

Honeycomb hexagonal optics: 120W Amber + CW (1600K Amber, 6000K CW) main exposure light
Surrounding 54×1.5W RGB LED (9×6 layout), 14-way constant-current pixel control
High-efficiency optical system, beam field angle 100°, total luminous flux＞5000lm
Flicker-free 8-bit /16-bit dimming, multiple dimming curve options (Linear, Square, Anti-square, S-line)
Built-in 33 preset user colors, macro dynamic effect programs, sound-active trigger function
LCD display with button menu for easy local setting
Power in-out loop connection; maximum 6 units daisy-chain on 1.0mm2 10A power cable
Safety rope mounting holes for truss hanging installation
Control modes: DMX512, RDM, Master-Slave, Auto-run, Sound-active
Light Source
Amber: 50W, 1600K
CW Cool White: 50W, 6000K
RGB: 54pcs ×1.5W (9×6 arrangement), 14-segments pixel independent control
Effects

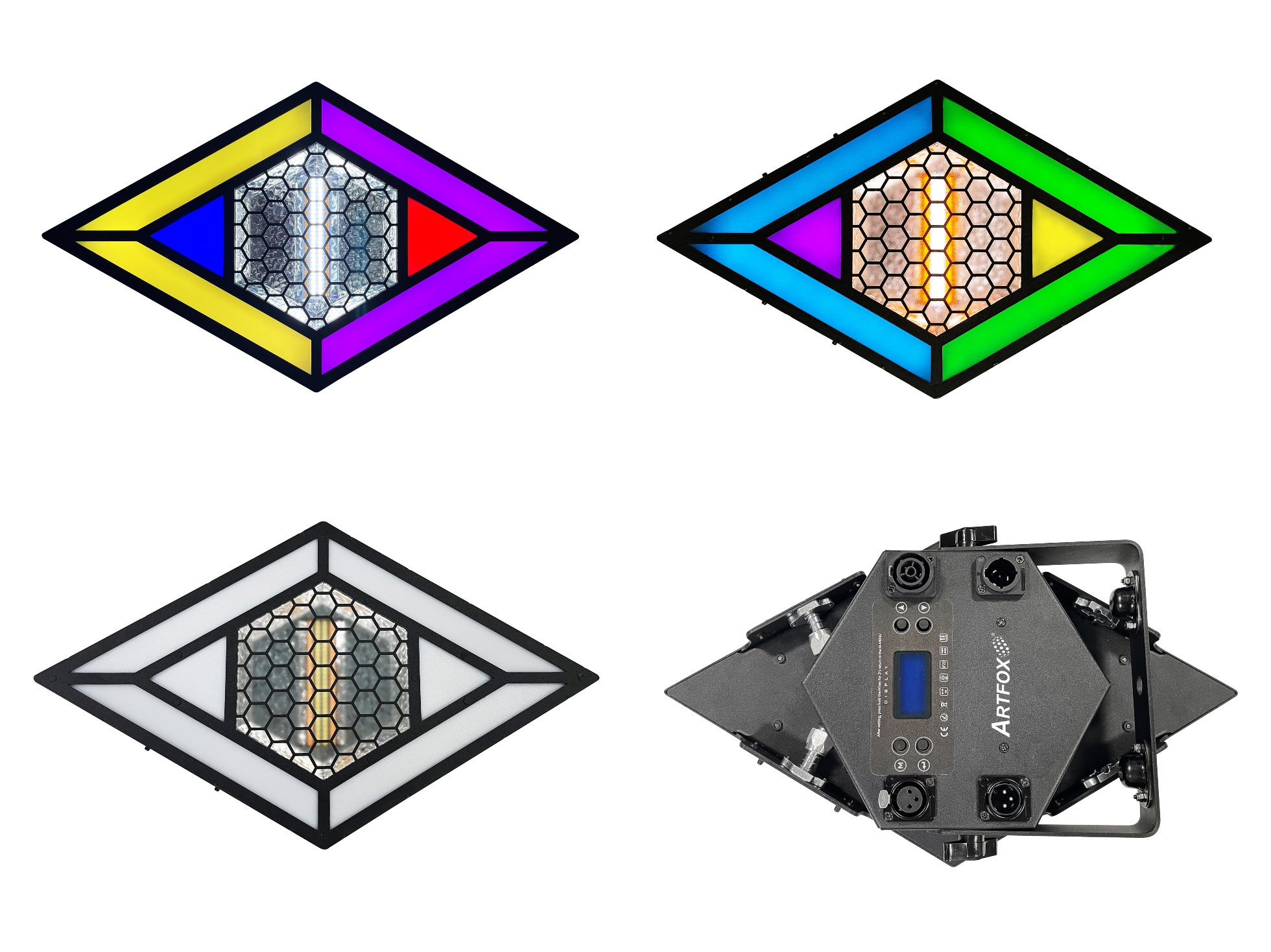

Individual dimming & strobe for Amber / Cool-White / each RGB pixel zone
33 preset static user colors
Multiple built-in macro dynamic effect patterns
Sound-active music-triggered effects
Pixel-mapping, sim-tungsten vintage warm lighting output
Control / Connections
DMX Channel Modes: 19CH / 33CH / 28CH /14CH
Protocol: DMX-512 (1990), RDM supported

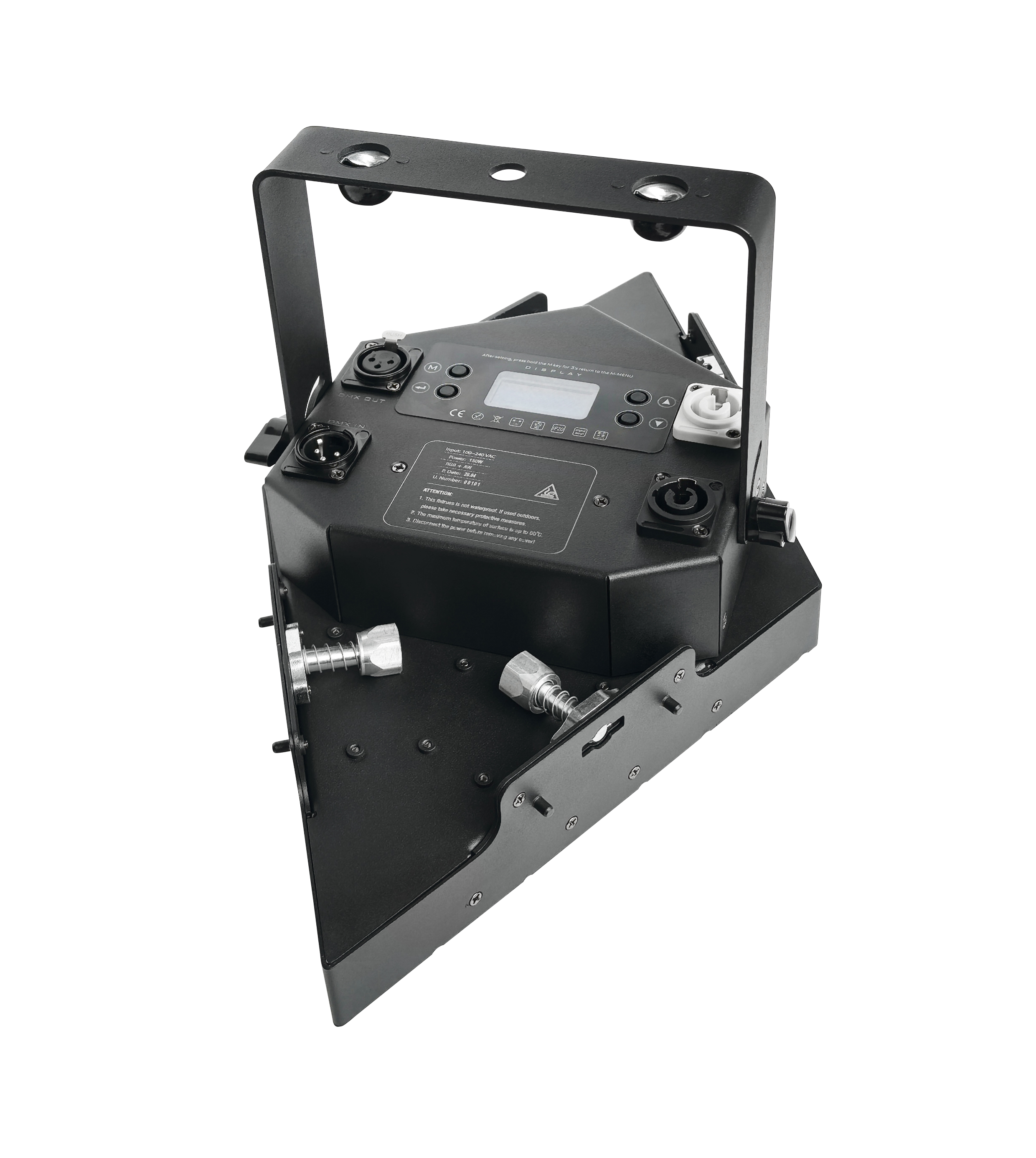

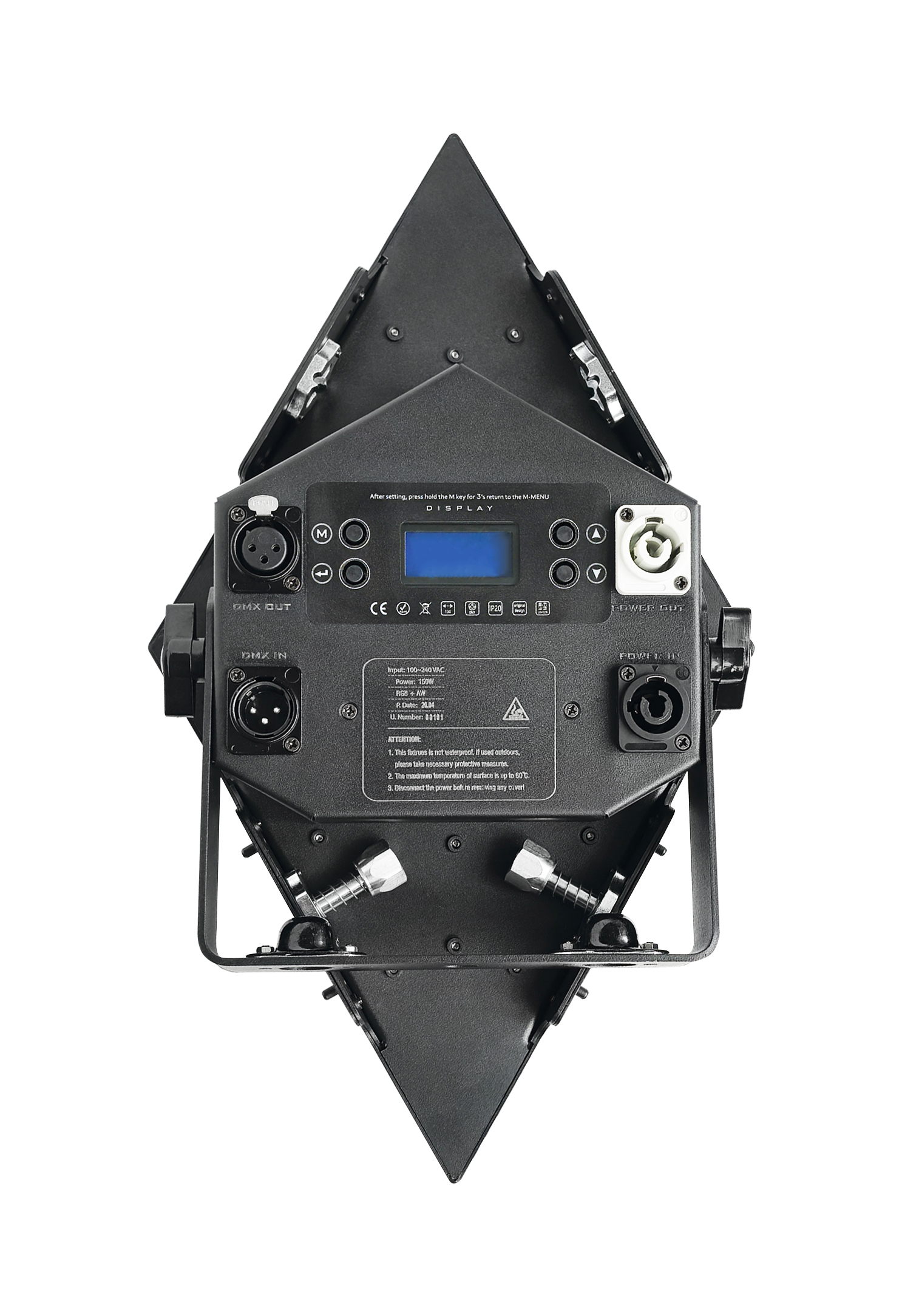

Control panel: LCD screen + MENU / UP / DOWN / ENTER buttons
DMX port: 3-pin /5-pin XLR In & Out
Power: AC power In / Out loop terminal
Working temperature: -30℃ ~ +70℃
Electrical
Input Voltage: 100-240V AC, 50/60Hz auto-range
Max Power Consumption: 150W
Ground connection required; over-current fuse protection
Construction
IP Rating: IP20 (Indoor use only, NOT for wet / outdoor environments)
Housing: Metal panel with folding mounting bracket, LightCON quick-lock splicing mechanism
Dimension: L398 × W230 × H90 mm (L15.67 × W9.06 × H3.54 inches)
Net Weight: 2.7 kg (5.95 lbs)
|
|
|
|
|
|
