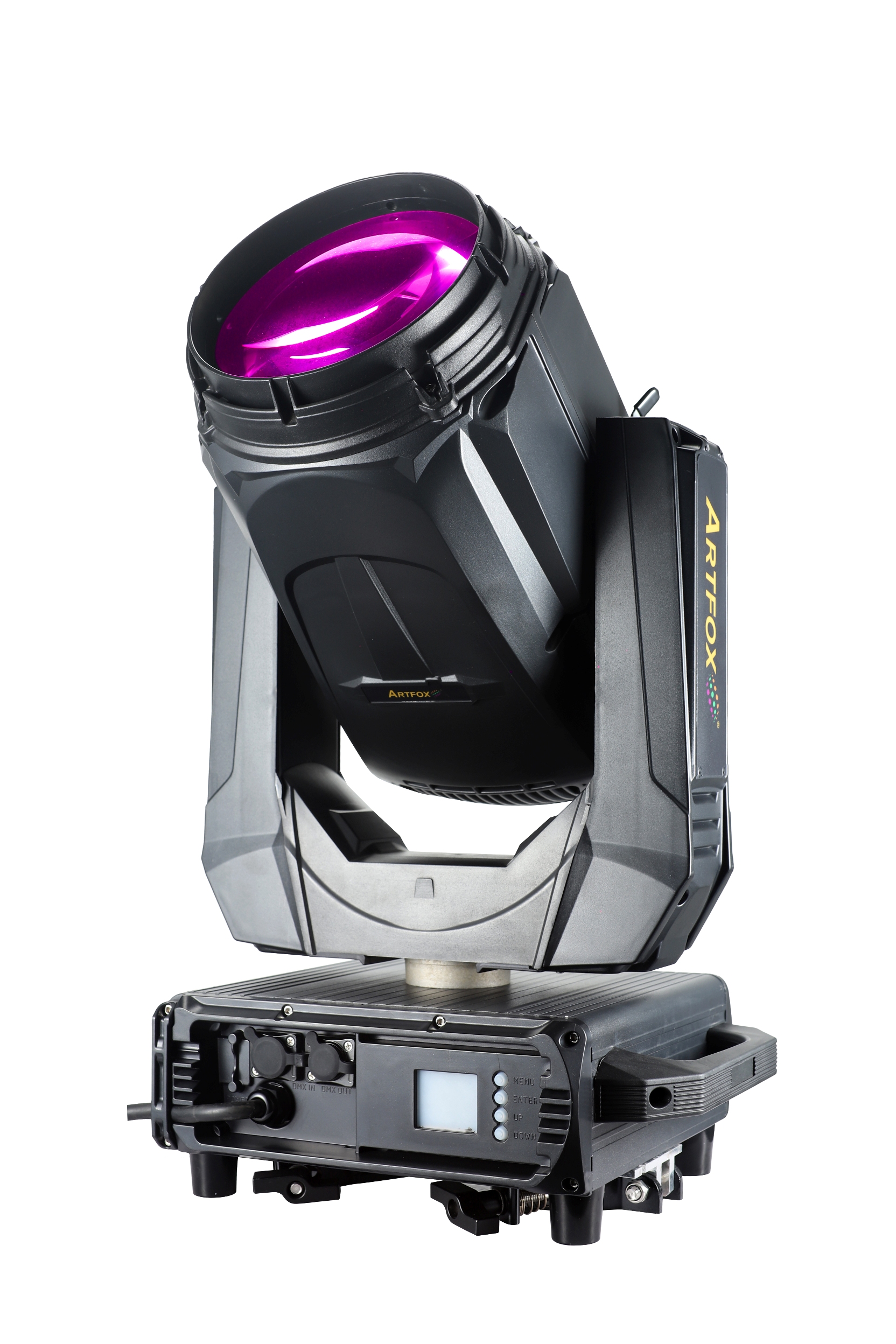

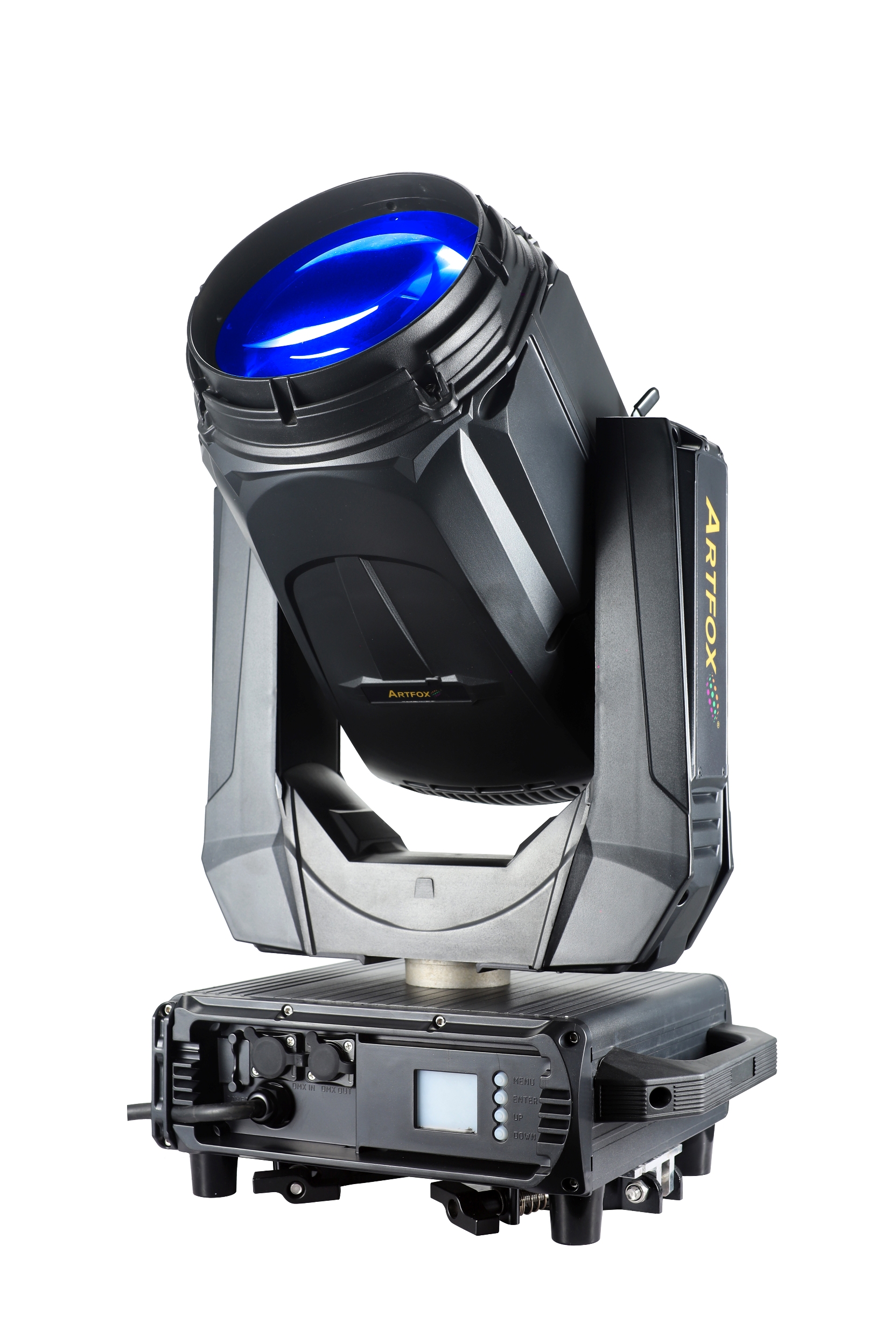

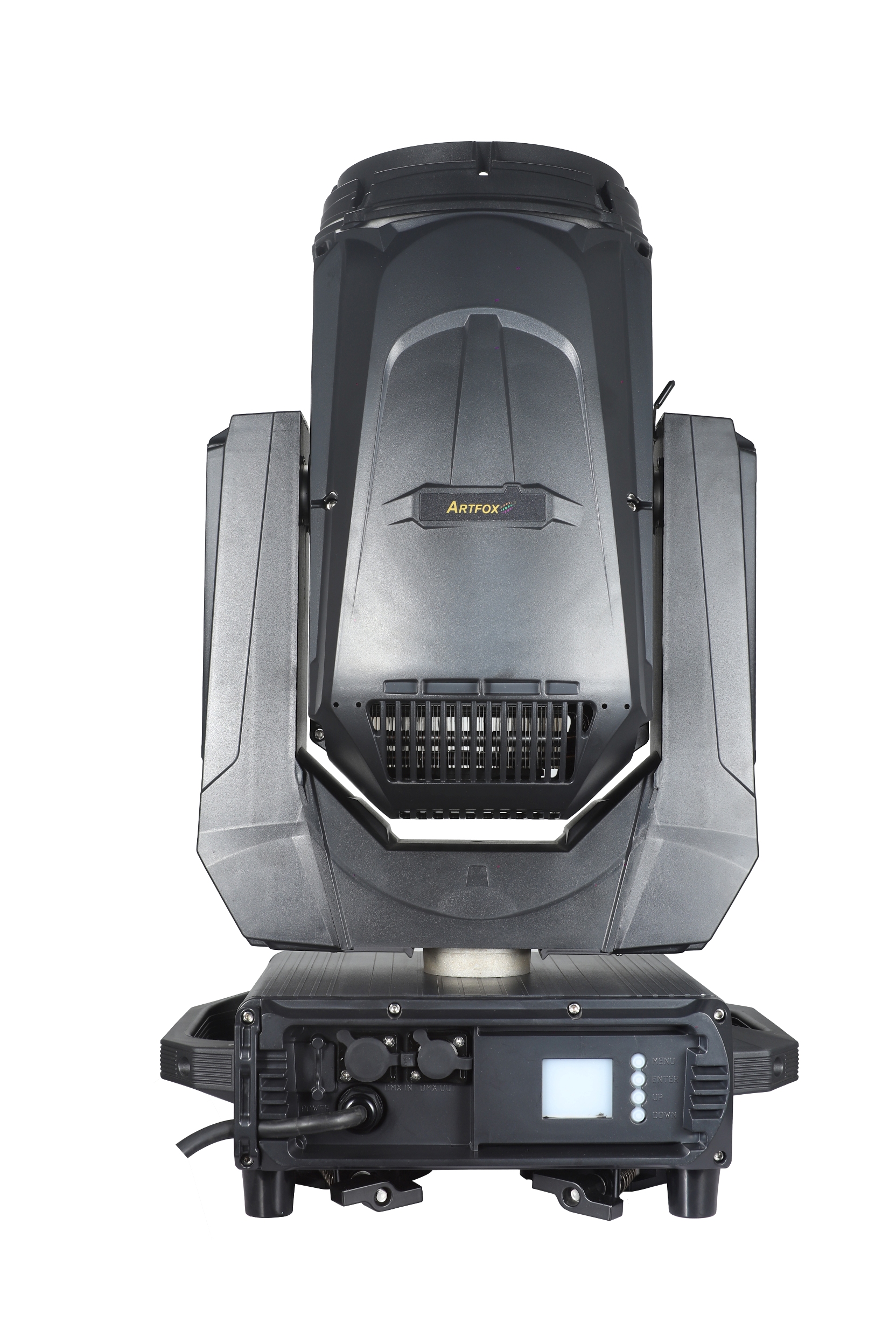

Outman Beam L120 ring - Aluminal body, Laser 120w lamp, LED ring
|
Outman Beam L120 ring powered by laser 120w light source, features a high-end die-cast aluminum shell, conforming to national standards! It contains no plastic, making it suitable for use in harsh outdoor environments.
It can withstands 360° impacts from giant waves, truly achieving an IP65 waterproof rating. The waterproof beam light meets high industry standards in terms of optics, structure, and appearance. Utilizing advanced technology, a high-brightness light source, and rigorous industrial design, it ensures the perfect presentation of lighting designs.
Features:
High-power 120W laser light source for ultra-bright output
Narrow 0-1.8° beam angle with sharp aerial effects
Dual rotating prism system for advanced beam splitting and texture
IP66 waterproof design for reliable outdoor performance
Intelligent positioning and fast, silent 3-phase motorized movement
Ideal for concerts, outdoor events, architectural lighting, and large-scale shows
1 color wheel with 14 colors + open ( 2 of the color for CTO)
13 gobos + open
Rainbow effects
Two prisms
LED ring
Frost
Fully die-cast casing, no plastic parts. IP65 waterproof
CONTROL / CONNECTIONS
DMX Channel Modes: 24ch
Fast smooth, and precise Pan and Tilt Movement
LCD display, rotatable for different installation orientations
DMX512, RDM, Auto-run, Master-slave
Intelligent photoelectric repositioning correction; automatically returns to the correct position after accidental movement.
Equipped with pan/tilt locking knobs for easier maintenance and transportation
Folding Clamps
AC: 110V-240V 50-60Hz
RATINGS: IP65
Technical Specifications:
Electrical
Input Voltage: AC 110-240V, 50/60Hz (wide voltage range)
Power Consumption: 150W
Optical System
Light Source: Laser light source 120w
Lift span: 12,000 hours
Beam Angle: 0 - 1.8°
Color Wheel: 13 fixed colors + open + rainbow effect + frost function
Gobo Wheel: 14 fixed gobos + open
Prism: 2 prisms, 8 prisms/ 8+16 prisms and rorating
Dimming: 0-100% smooth linear dimming curve
Lens Diameter: 165 mm (6.5")
SIZE and WEIGHT
Light size: 13x9x24 inches, 44lbs
Carton box size: 26x20x17 inches, 53lbs
Flight case size: 32x16x32 inches
|
|
|
|
|
|
