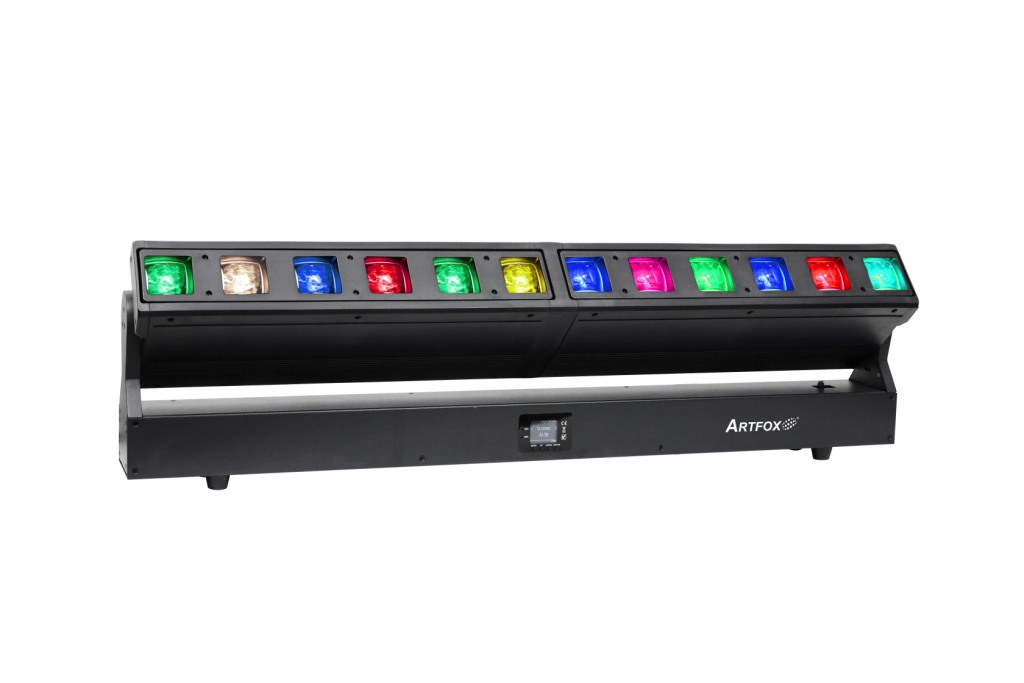

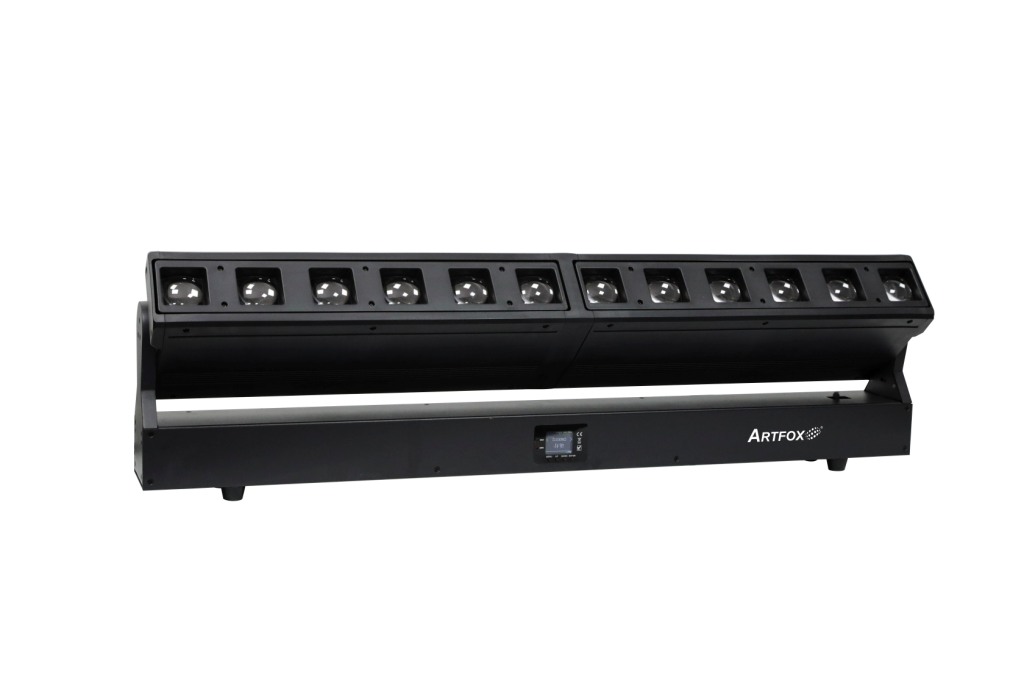

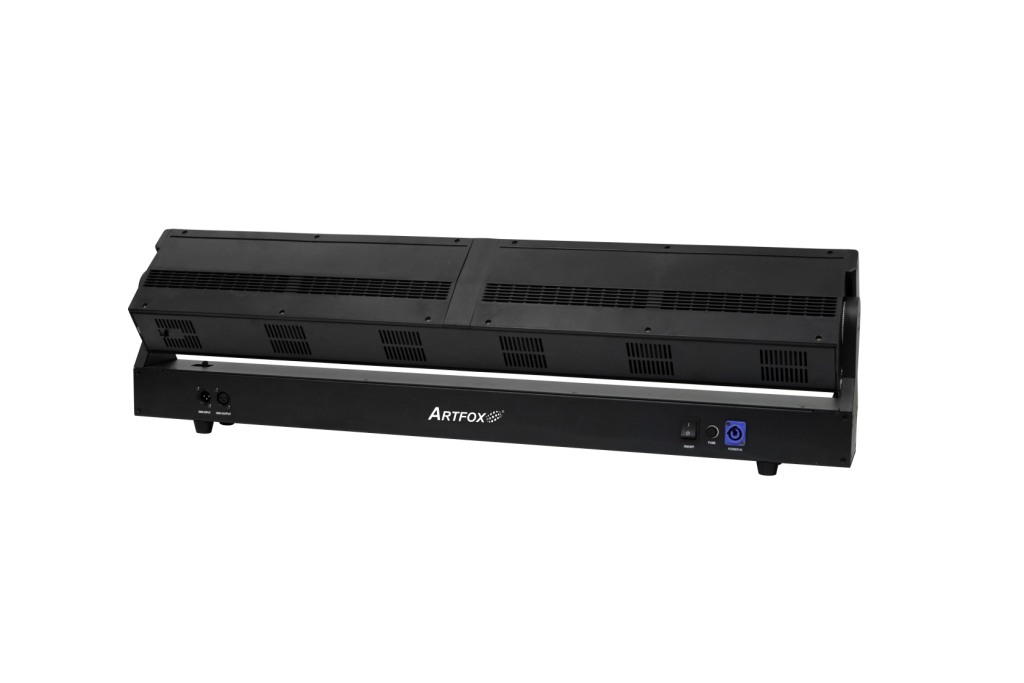

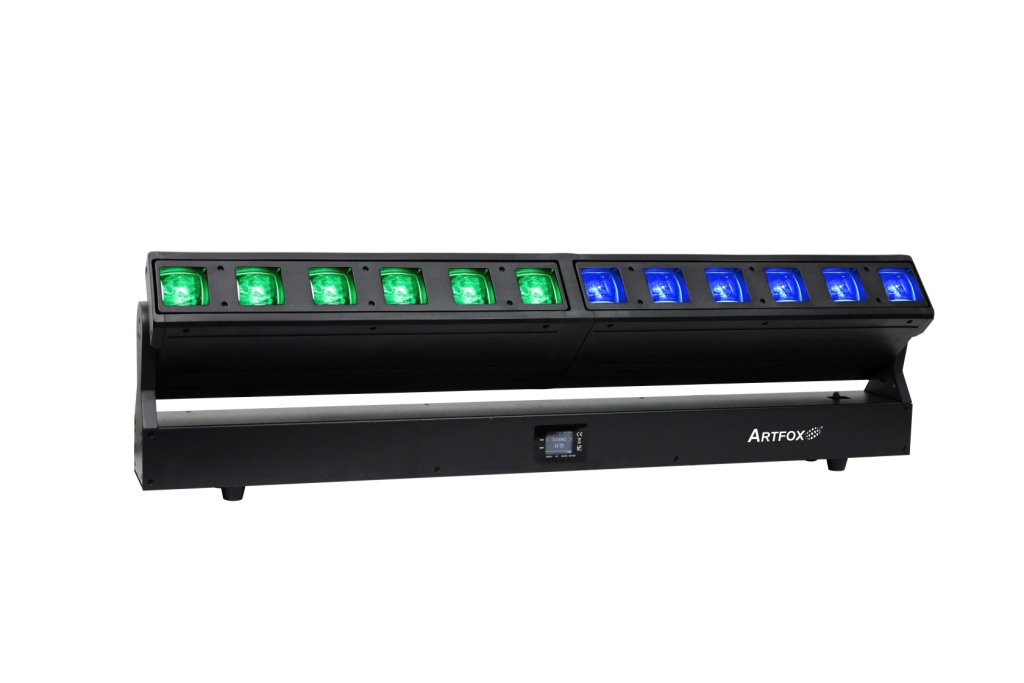

Shine Line 12QL - 12x40w RGBW LEDs,4° - 45° linear zoom, Pixel Tech
|
Shine Line 12QL is a new 12 pixel bar wash zoom, featuring 40W 4-in-1 RGBW LEDs, motorized 4° to 45° zoom and 220° tilt movement, full pixel control, featuring 2 independent zoom zone, 6 pixel of each.
Remark: 2PCS of Shine Line 6Q is able to lock together as an use of Shine Line 12QL.
Features:
12 Pixel Bar Beam Wash with 40W 4-in-1 RGBW LEDs
2 independent zoom zones, 6 of each pixel
Motorized 4° to 45° Zoom and 220° Tilt Movement
RGBW Color Mixing and Full Pixel Control
8/16 bit dimming curved
High refresh rate , flicker free to TV/ Film Use
Flicker Free Operation for TV and FILM
DMX, RDM, (Art-Net customized)
SOURCE:
(12) 40W 4-in-1 RGBW LEDs
50,000 Hour Average LED Life*
EFFECTS:
Motorized Zoom 4° to 45° ,narrow beam to wide wash, and 220° Tilt Movement
RGBW Color Mixing and Full Pixel Control
Built-in Color Presets and Unique Color Macros
Electronic Strobe, 16-bit Variable Dimming Curve Modes
CONTROL / CONNECTIONS:
4 DMX Channel Modes (16/21/52/64CHS)
DMX & RDM, (Art-Net for optional)
4 Button Touch Control Panel
180° Reversible LCD Menu Display
8 / 16-Bit Resolution Zoom and Tilt Movement
5pin DMX In/Out
RJ45 Ethernet In/Out (for optional)
Powercon Power In/Out
SIZE / WEIGHT:
Length:39.6''(1005mm)
Width:3.9''(100mm)
Vertical Height:15.15''(385mm)
Weight:35.7lbs(16.2kgs)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
600W Max Power Consumption
|
|
|
|
|
|
