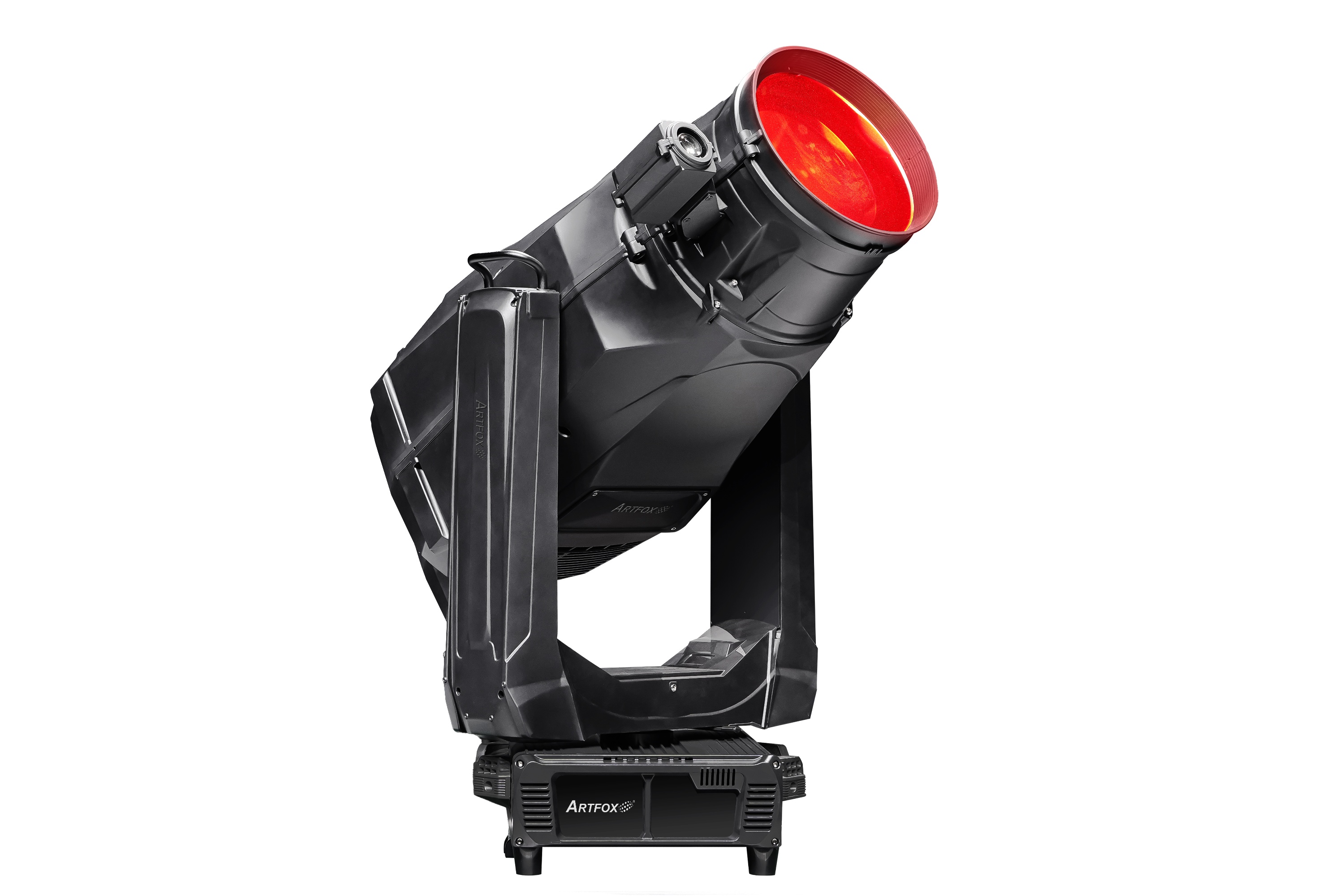

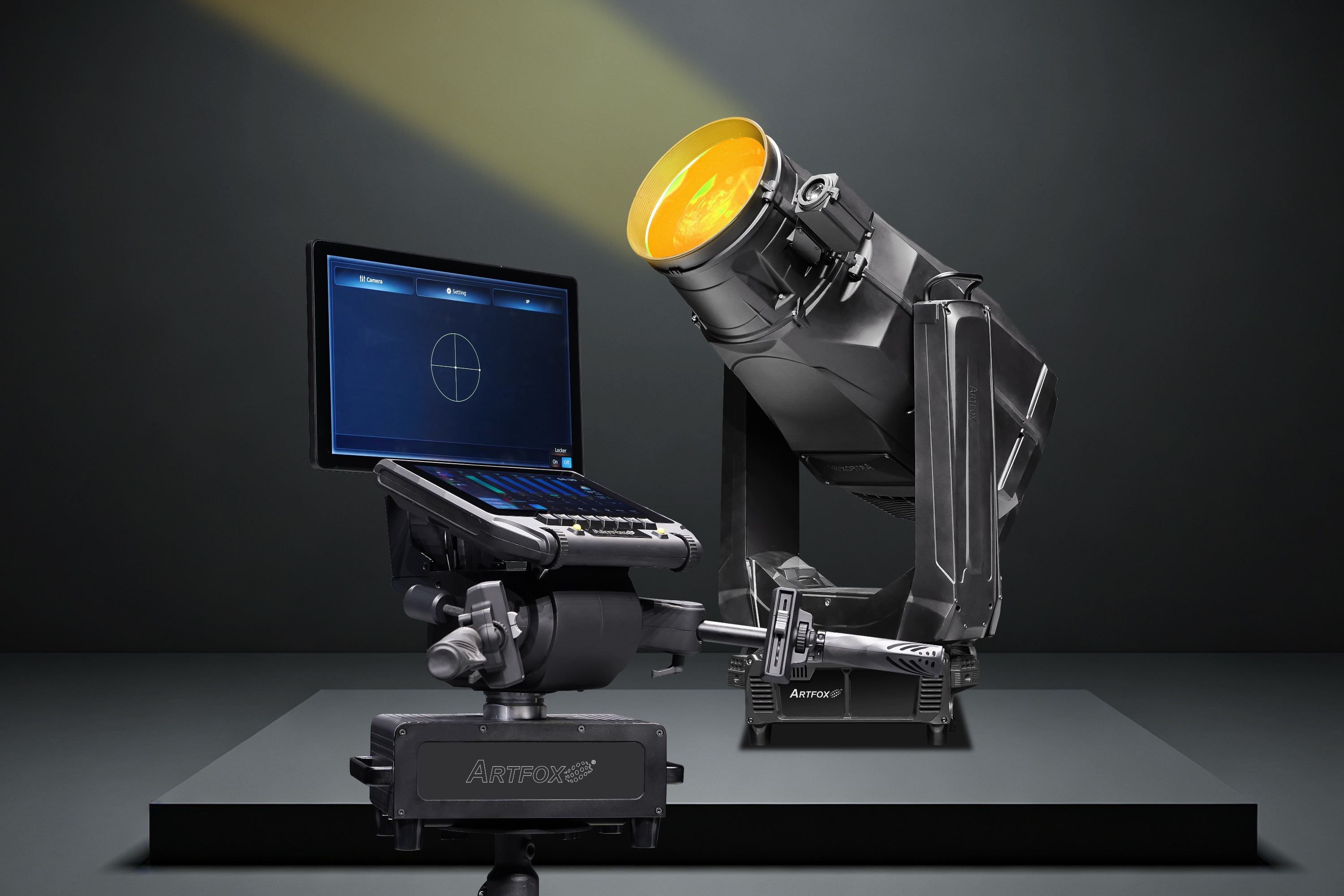

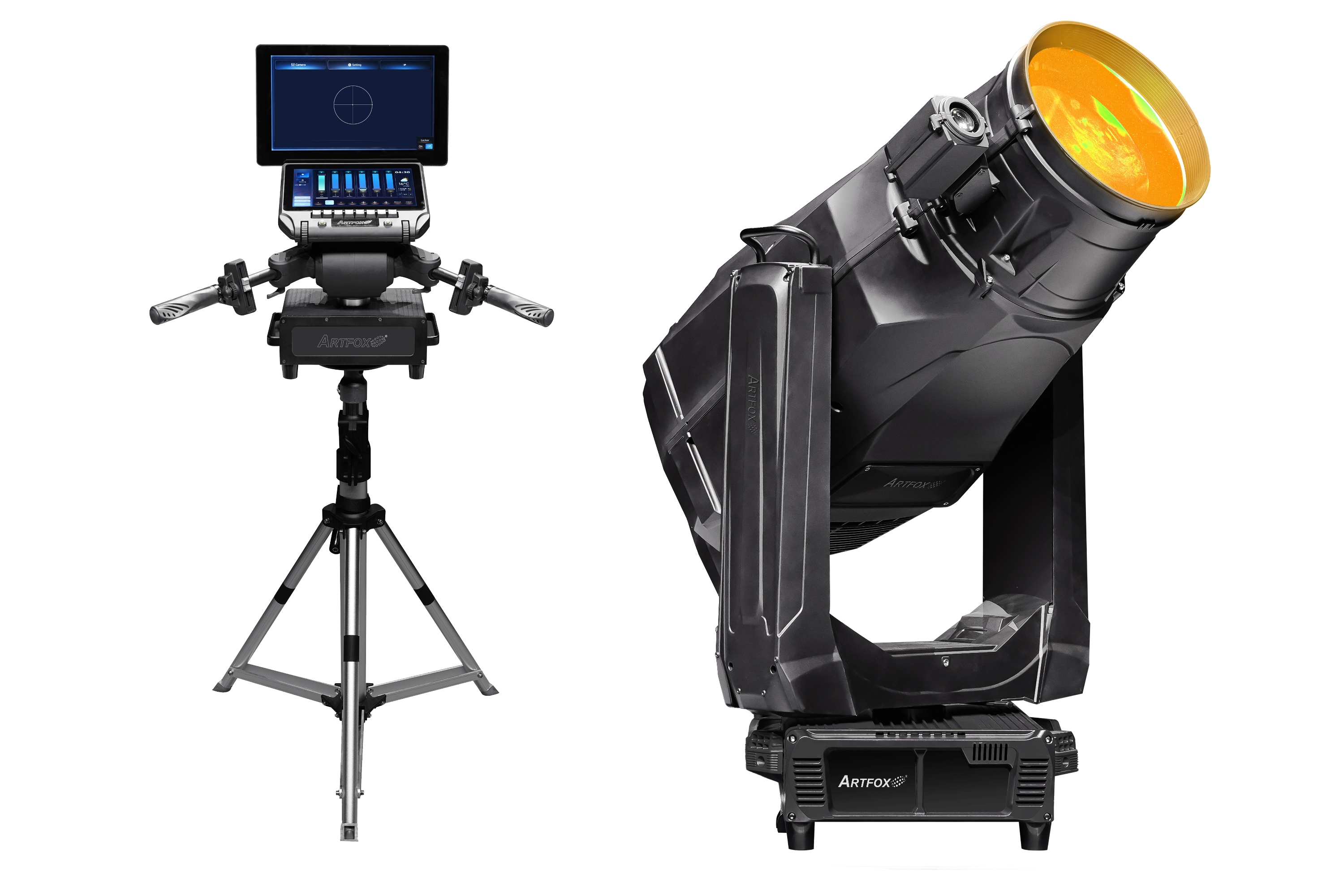

TrackSpot 1800 IP - Track Control System with Camera, Touch screen, 1800w LED lamp, IP65
|
Track Spot 1800 IP- Specification：
CAMERA
32x optical zoom
convertible in the day and night (ICR)
POWER
Voltage: AC 100~240V 50/60Hz
Power: 1950W
LIGHT SOURCE
1800W LED
Lifespan: over 20,000 hours
COLOR TEMPERATURE
CTO (6000K-2800K) linear adjustment
GOBO
Static Gobo: 4 metal gobos
EFFECT
Frost: An independent frost
Dimmer & Strobe: 0-100% electronic dimmer, fast electronic strobe
Iris: 5%-100% linear adjustment
Zoom: 1.8°-10°
CONTROL
Display: LCD Display
DMX Channels: 39 / 34
MOVEMENT
Pan: 540°
Tilt: 245°
SIZE & WEIGHT
Size: 16.22L × 12.99W × 33.98H (in) = 412L x 330W x 863H(mm)
Net weight: 75 lbs = 34.00kgs
light IP Rating
IP65

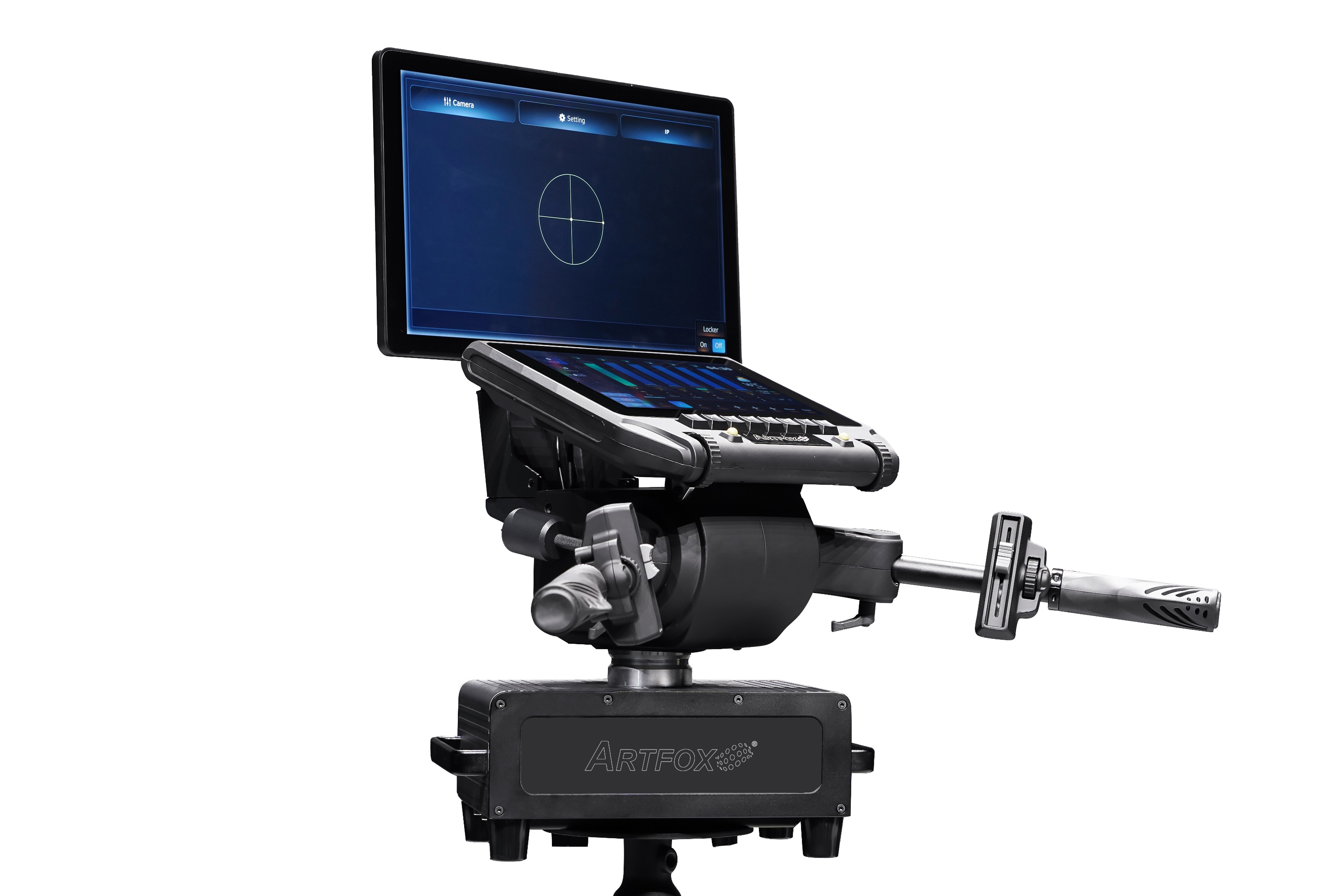

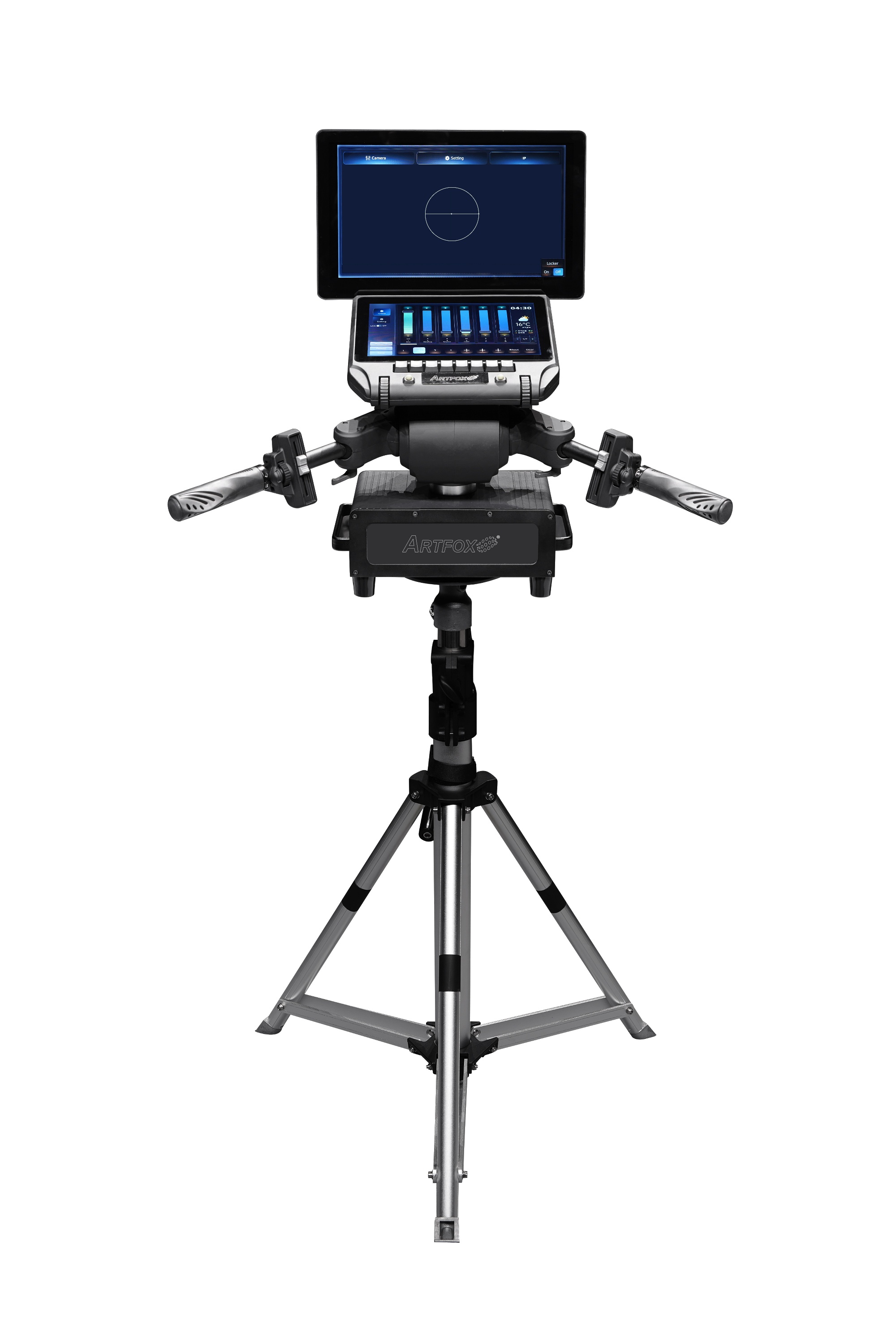

Track System - Specification
POWER SUPPLY
Voltage: 100-240 V, 50/60 Hz
Power: 40W
FUNCTIONS

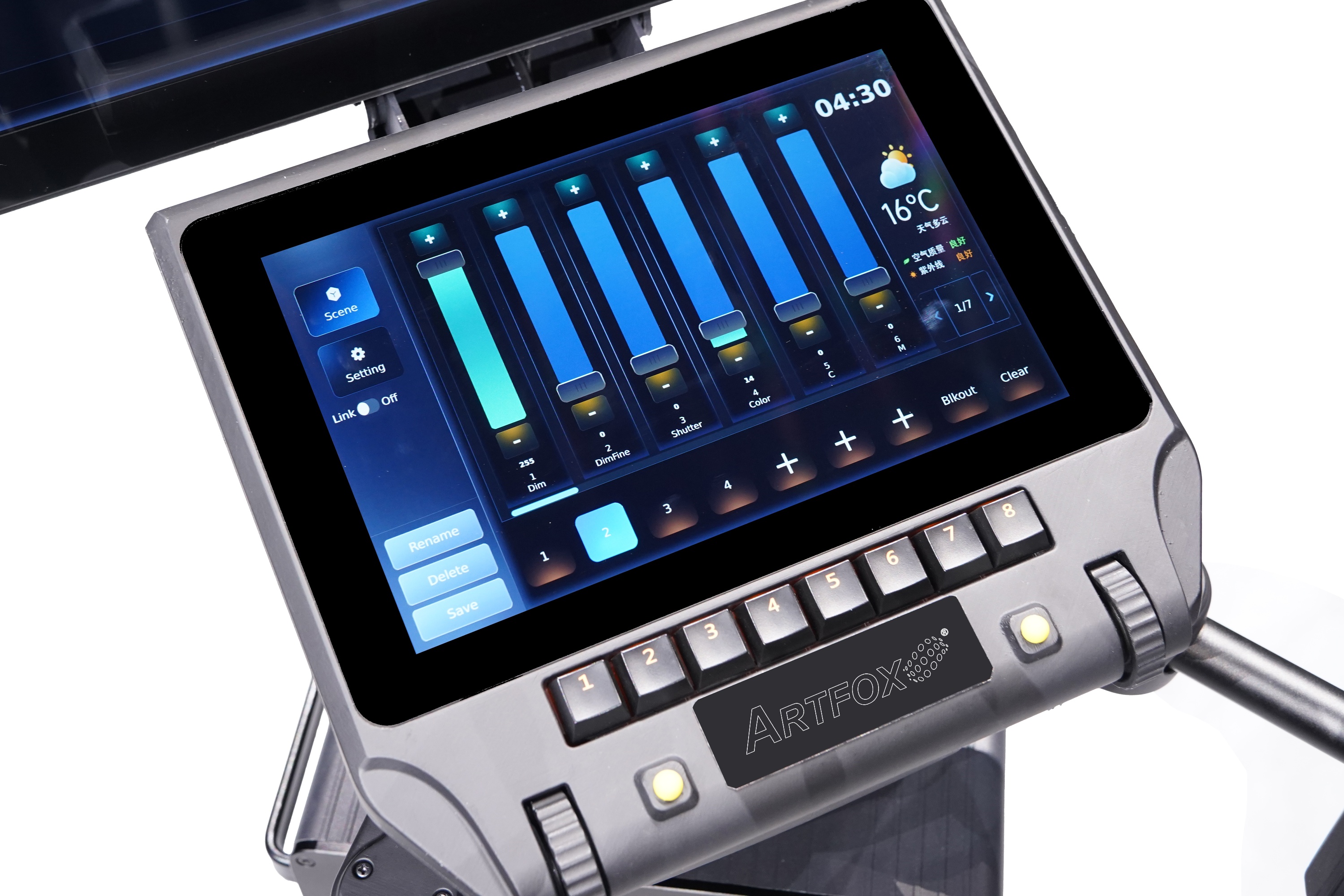

Touch Screen: 15.6" & 10.1" touch screens for human-computer interaction
8 physical command buttons
8-way custom encoders
2-wayphysical attribute adjustment faders
Tracking Movement: Manual operation
Compatible with MA console to control the unctions
CONTROL
Supports network port upgrade software
Power in connector: PowerCON
Ethernet port in: RJ45
MOVEMENT
X-axis Movement: -80 - 80°
Y-axis Movement : -45 - 45°
IP20
|
|
|
|
|
|
