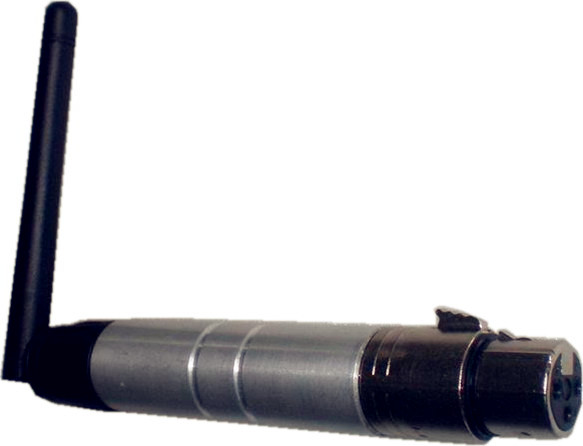

Wireless DMX Pen - Support all DMX512 equipment
|
Features:
1. LED to display mode
2. Easy to use wireless DMX system in a convenient form factor
3. Long range & High reliability
4. Compatible with all DMX512 compliant equipment
5. Supports up to 7 simultaneous DMX universes per location
(Multiple systems required)
Specifications:
1. Transmitter/Receiver band: 2.4GHz ISM (2.4-2.52Ghz)
2. 126 channels jumping frequency -automatic
3. Channels: 512
4. Frequency Groups: 7
5: Transmitter power: 20dBm
6. Receiver sensitivity: -94dBm
Size:F25*220mm Weight:0.1kg
Product Features
1. Product name: 2.4G wireless WDMX-MC1
2. Tricolor LED mode display
3. 126 channels auto-jumping frequency selector
4. 7 group operation. User can select up to 7 non-interfering channels for simultaneous use.
5. Input voltage: 5VDC 500mA MIN
6. Communication distance: 400M (line of sight, depends on environment)
7. Operating frequency: 2.4G ISM 126 channel
8. Max transmission power: 20dBm
9. Receiver sensitivity: -94dBm
10. Signal port: 3pin Female socket
Used For
Wireless DMX transmitter and receiver in small package. Tri colour LED indicates mode and AC adapter power pack is included.
The pic shows 2 units, but they are priced per each as each setup will require a different number of Tx and Rx devices.
Very simple to set up and use, but the model with the LCD display makes it even easier to see what channel and group things are operating on if you have a few systems in the same venue.
|
|
|
|
|
|
