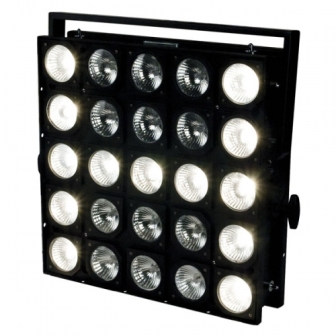

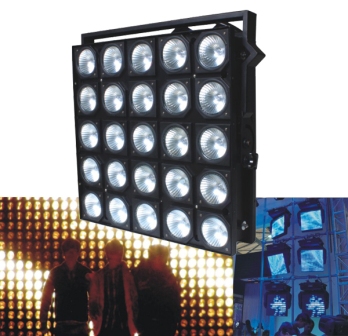

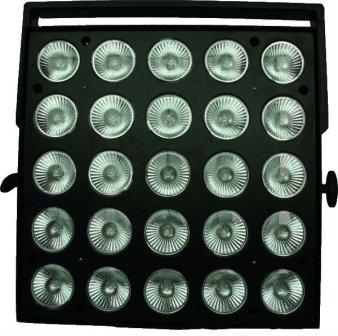

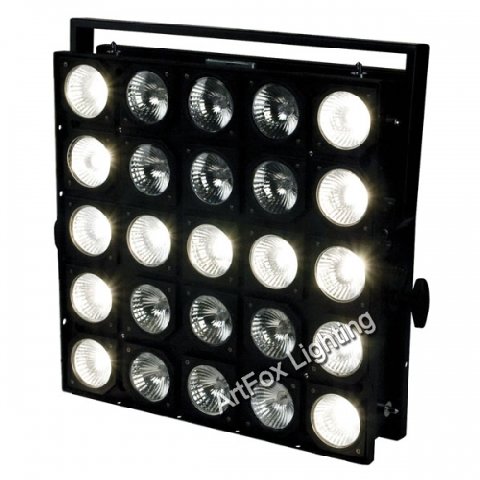

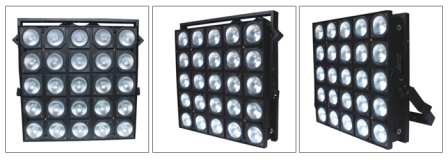

Blinder Matrix - 5x5 Osram Par 30
|
Matrix is an extraordinary and multifunctional Audience blinder.
Including 25 x Osram Par 30 Flood lamp (75W, E27).
It has 4 different DMX modes. The most basic one needs only 4 DMX channels and makes it easy to control the Matrix by its built-in macros. The most advanced mode needs 29 channels and allows you to control all lamps and all macro's independently.
A 25 channel DMX channel mode is included in order to use the Matrix with pixelmapping.
For easy connection the Matrix is equipped with a fast-lock locking system.

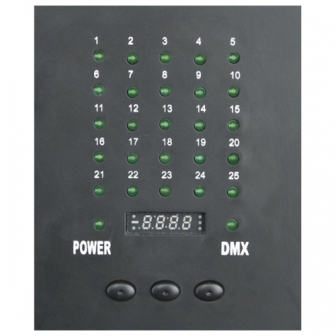

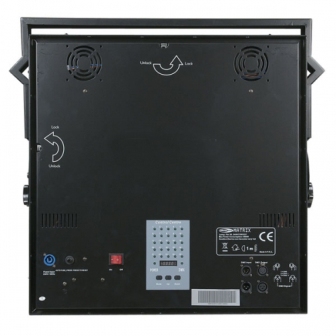

Furthermore it has Neutrik Powercon input and both 3 pole and 5 pole XLR connectors for data input and linking. Addressing is easy by the digital LED display.
Specifications
Power input: AC220-240V, 50Hz~60Hz
Lamp: 25 x Osram Par 30, 240V/75W, E27,
Flood (80121) Included
Lamp Angle: 30°
Total Power Consumption: 1900W
Fuse: 20A
Unit Size: 610 x 610 x 150 mm
Net Weight: 19.8 kg
|
|
|
|
|
|
